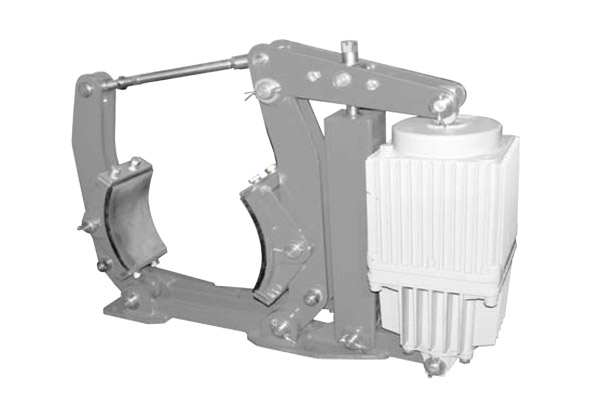

Brake

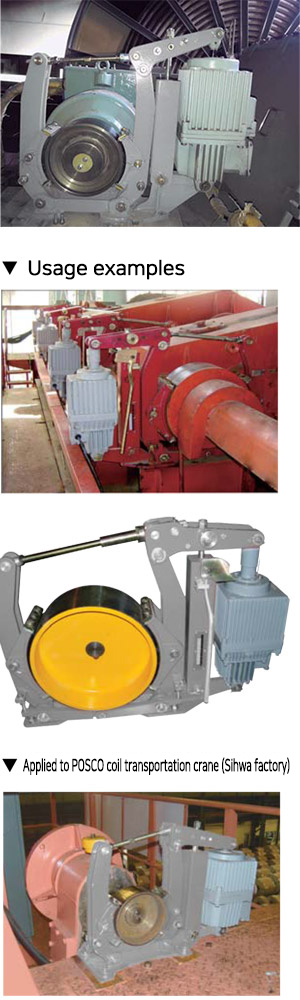

Hydraulic drum type

Hydraulic drum type



  • - This KSB type brake is produced, complying with German DIN15435 and DIN 15430 rules,Vertical type, For industrial mobilities, conveyor, crane drive, Usable at marine circumstance, port, coal mind, etc
Quality Management
  • Pre-inspection system applied
  • After service guranteed
  • 2 years free of charge A/S
FEATURES

  1. Perfect oil leak shut out
    A particular step seal is applied to minimize the frictional resistance of cylinder and double rodseal and dustseal are applied

  2. No fueling brake
    Connecting pin holes between parts of this are made with dry metal bearing.

  3. Low noise and vibration
    Soft working by hydraulic way.

  4. Compact size, light, and easy maintenance
    Main frames are made of high strength steels, thrustor is made of aluminum. Also, brake lining is replacable, not decomposing drum or motor..

  5. Perfect operation performance
    Structured by interlocking shoe balance type that both brake linings are working and asymmetric one-sided wear is prevented.

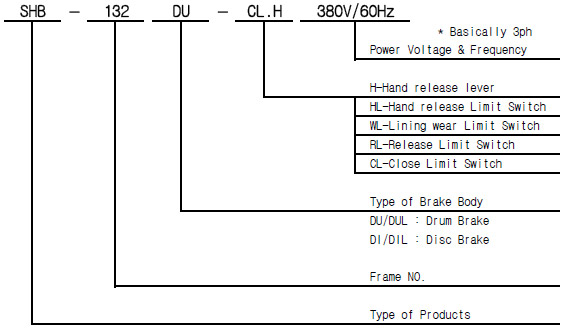

STANDARD EXPLANATION
OPTION
  • Brake limit switch
  • Lining abrasion limit switch
  • Manual open
  • Descent control valve
SPECFICATION
  • Protected structure : indoor non-protective type
  • Attachment : Floor
  • input power : AC 440/380/220V, 3ф, 50/60Hz
  • Power change limit : V : -15% ~ +10%
  •   Frequency : -5% ~ +5%
  • Duty cycle : 80% ED
  • Grade of insulation : F
  • Relative humidity : under 90%
  • Ambient temperature : -25 ~ +50℃
  • Maximal use frequency : S3-50% 1200/h
  • Color : RED, YEALLOW, BLUE
  • Thrustor Oil : KSC 2301 insulation oil 1 type no.4
Oil Thrustor Drum Brake
Oil Thrustor Drum Brake
SPECFICATION
Electro-hydraulicdrumbrakes

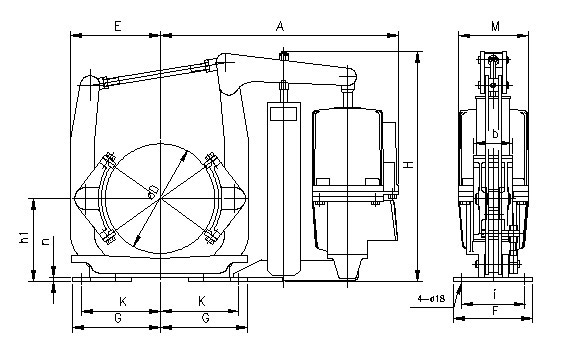

Dimensionsandtechnicaldata
Motor brake type Thruster type brake torque
(㎏-m)		 Dimensions(㎜) Weight
Frame
No.		 40%ED
Output		 Number
of Pole		 D h1 k i d n b F G E H A M (㎏)
132M 2.2/3.7 6 KSB-132DU22 Sd220-50 5/6.7 160 132 108 150 12 6 80 190 150 140 430 440 160 25
160M 5.5/7.5 6 KSB-160DU22 Sd220-50 10/14 200 160 127 170 15 8 100 210 165 170 510 450 160 39
160L 11 6 KSB-160DU30 Sd300-50 21.2 200 160 127 170 15 8 100 210 165 170 510 450 160 42
180L 15 6 KSB-180DU30 Sd300-50 30 250 180 139.5 180 15 10 125 220 200 205 525 545 160 49
200L 22 6 KSB-200DU50 Sd500-60 40 250 200 159 190 19 10 125 240 200 205 590 545 194 61
225M 30 6 KSB-225DU50 Sd500-60 53 315 225 178 220 19 10 160 270 245 260 620 605 194 86
250M 37/45 6 KSB-250DU80 Sd800-60 63/80 355 250 203 240 24 10 180 300 245 285 735 640 194 88
280M 55 8 KSB-280DU80 Sd-800-60 132 400 280 228.5 260 24 12 200 330 300 305 745 650 194 110
315M 75/90 8 KSB-315DU125 Sd-1250-60 180 450 315 254 300 28 12 224 360 317 335 823 740 240 133
355L 110/132 10 KSB-355DU200 Sd-2000-60 335 500 355 305 340 28 16 250 400 365 370 860 770 240 208
400L 160/200 10 KSB-400DU200 Sd-2000-60 400/475 560 400 343 360 35 20 280 440 450 455 1015 870 240 310
527L 250/300 12 KSB-527DU200 Sd-2000-60 900 762 527 350 400 45 27 362 500 480 490 1270 970 240 650
