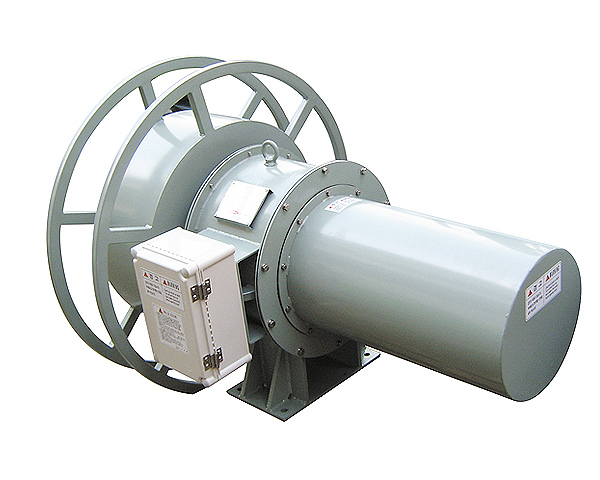

Cable reel (spring type)

ECS TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : multipolar, Water-resistance
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)
ECS45
ECS45
ECS45

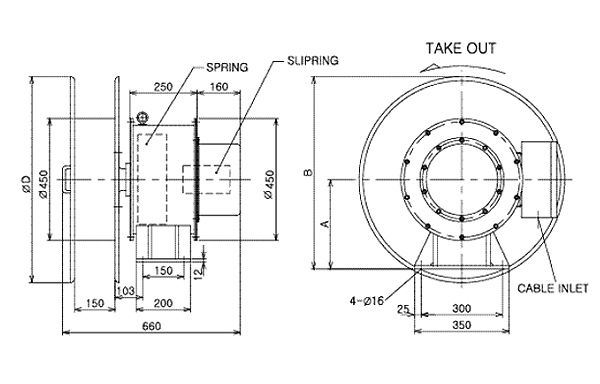

Drawing
/Classification		 A B D
14 280 605 650
15 350 730 760
16 350 780 860
