Reels for Special Vehicles - Hydraulic Hose Reel

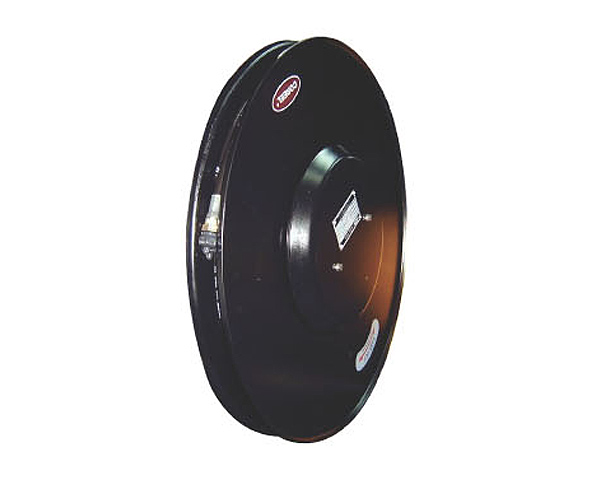

RH Series
(RH-TW)
- Used for telescopic boom of construction vehicles.
- Divided in Single hose type, Twin hose type and Four way hose type depending on usage ways.
- Customizable depending on usage location and condition
Considerate manufacturing is needed because taking out and
rewinding are conducted under high pressure. we produce this reel with best quality.

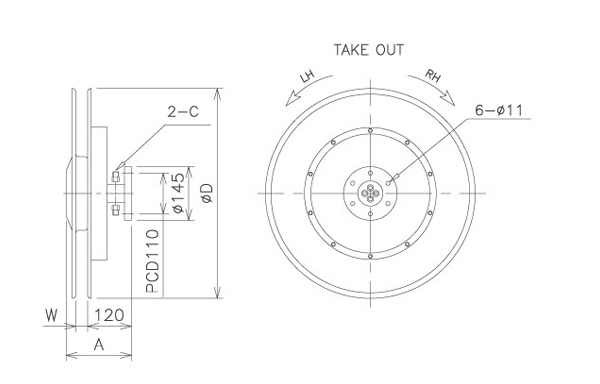

Drawings of RH Series
Specification of RH-TW
| MODEL | Hose Specification | Length(M) | Usage Pressure(kg/㎠) | A | C | D | W |
|---|---|---|---|---|---|---|---|
| RH-610TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 10 | 195 | 205 | PT 1/4 | 500 | 32 |
| RH-615TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 15 | 195 | 205 | PT 1/4 | 550 | 32 |
| RH-620TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 20 | 195 | 205 | PT 1/4 | 650 | 32 |
| RH-625TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 25 | 195 | 205 | PT 1/4 | 700 | 32 |
| RH-630TW | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 205 | PT 1/4 | 760 | 32 |
| RH-910TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 10 | 210 | 220 | PT 3/8 | 550 | 43 |
| RH-915TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 15 | 210 | 220 | PT 3/8 | 650 | 43 |
| RH-920TW | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 20 | 210 | 220 | PT 3/8 | 760 | 43 |

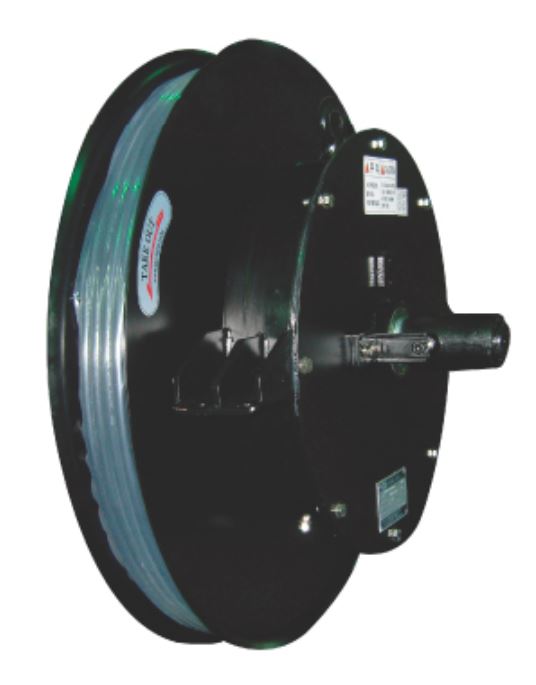

RH Series
(RH-TW-B, RH-WB)
- Used for telescopic boom of construction vehicles.
- Divided in Single hose type, Twin hose type and Four way hose type depending on usage ways.
- Customizable depending on usage location and condition
Considerate manufacturing is needed because taking out and
rewinding are conducted under high pressure. we produce this reel with best quality.

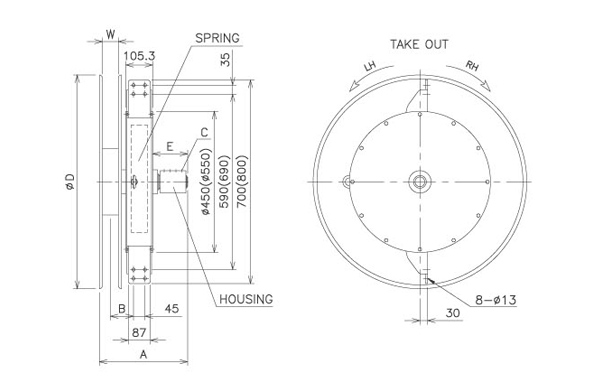

Drawings of RH-TW-B, WB
Specification of RH-TW-B, WB
| MODEL | Hose Specification | Length(M) | Usage Pressure(kg/㎠) | A | C | D | W |
|---|---|---|---|---|---|---|---|
| RH-630TW-B | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 286 | PT 1/4 | 760 | 32 |
| RH-640TW-B | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 40 | 195 | 286 | PT 1/4 | 860 | 32 |
| RH-925TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 25 | 210 | 296 | PT 3/8 | 860 | 45 |
| RH-930TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 30 | 210 | 296 | PT 3/8 | 950 | 45 |
| RH-940TW-B | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 40 | 210 | 296 | PT 3/8 | 1050 | 45 |
| RH-625-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 25 | 195 | 350 | PT 1/4 | 760 | 63 |
| RH-630-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 30 | 195 | 350 | PT 1/4 | 760 | 63 |
| RH-640-4WB | SYNFLEX Ø6.4 ×Ø12.7 × Twin | 40 | 195 | 350 | PT 1/4 | 860 | 63 |
| RH-925-4WB | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 25 | 210 | 360 | PT 3/8 | 860 | 75 |
| RH-930-4WB | SYNFLEX Ø9.5 ×Ø17.5 × Twin | 30 | 210 | 360 | PT 3/8 | 950 | 75 |
