Slip ring
![For Multi Center Joint](/Content/images/newpro/Functionality_zoom/z_08_06.jpg)
Multi Center Joint
- Mechanical strain generated from a body of rotation can be delivered, not bothring cables of other equipments.
- Applicable for various field.
- Ampere Range : 10A ~ 300A

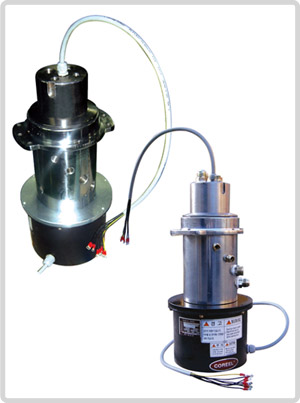

Multi Center Joint
Interal design not making problem of delivering oil pressure, power, signal, and image. Easy and simple installment and high-durability.
![](../../../Content/images/content/slipring12.jpg)
![](../../../Content/images/content/slipring13s.jpg)

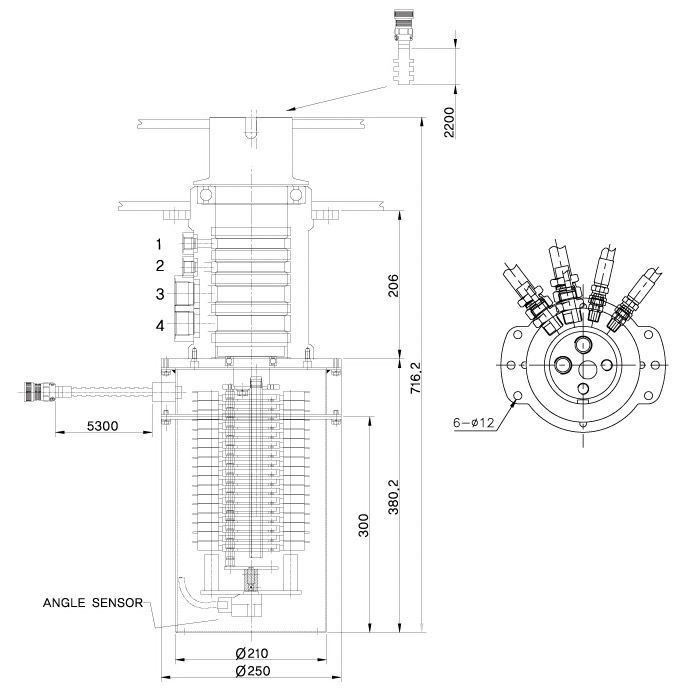

Specific figures
- 1" 2PORT, 3/8" 2PORT(210㎏/㎠)
- Electric cable specification :
- Power AVS 3.5SQ 2P
- Signal AVS 0.5SQ 15P
- Length of input cable (the bottom of Joint) 5.3m
- Length of output cable (the top of Joint) 2.2m
- Cable with wire protector pipe.
- Cable end : MS CONNECTOR (MS 3106 28-11 22PIN+MS 3057-16A)
Center Joint

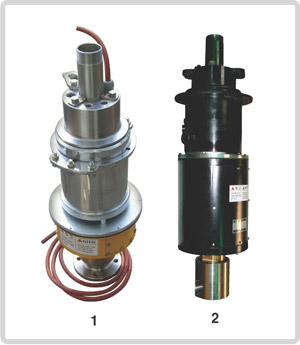

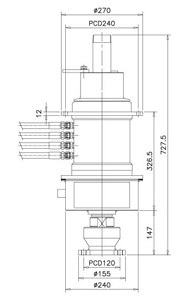

Center Joint of Fire truck has been designed for special prupose to supply oil pressure, water pressure and supply power and signal to aerial (turntable)ladder as integrated product.
![](../../../Content/images/content/slipring141.jpg)
![](../../../Content/images/content/slipring151s.jpg)
Feature1
- Oil portt : 2 ~ 6 Port
- Water port : 2" ×1 Port
- Slip Ring : 2 ~ 10A/3~25p
- working pressure : 50 ~ 290㎏/㎠
Feature2
- Shaft can be acceptable based on user's request(2",3",4" etc)
- Material of Shaft is uses stainless steel to prevent from rusting.
- Multi center joint for the application of power, Signal and Hydraulic.
- Customized specication is acceptable.
