Reels for Special Vehicles - Air Supplying Reel
AC Series
- Any Specification can be acceptable as buyer's request

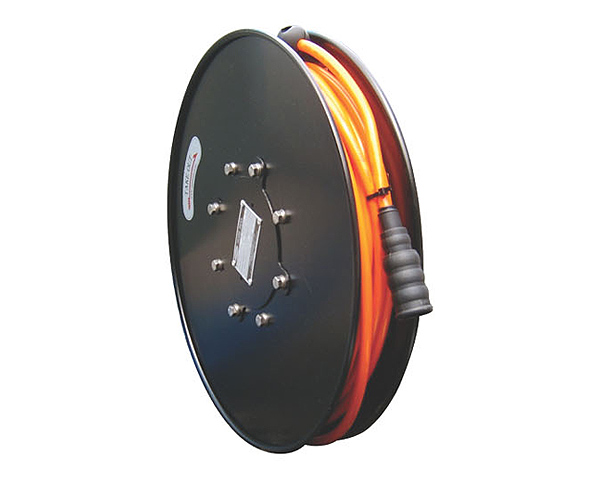

Installed on the boom of construction vechicle to supply air for air equpment.

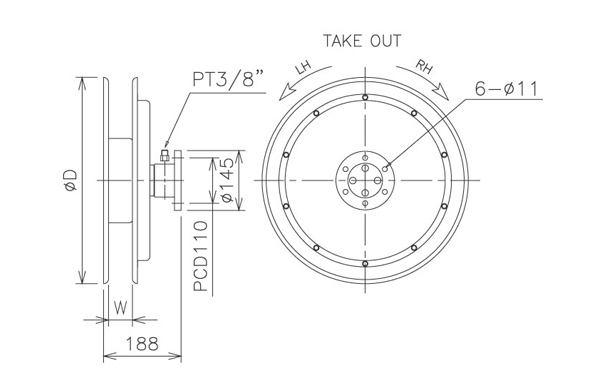

Drawings of AC Series
AC Series Specification
| MODEL | Hose Specification | Material(M) | Working Pressure(kg/㎠) | D | W |
|---|---|---|---|---|---|
| AC-825C | polyurethane Ø8 ×Ø 12 | 25 | 10 | 550 | 32 |
| AC-825C | polyurethane Ø8 ×Ø 12 | 30 | 10 | 600 | 32 |
| AC-825C | polyurethane Ø8 ×Ø 12 | 35 | 10 | 650 | 32 |
