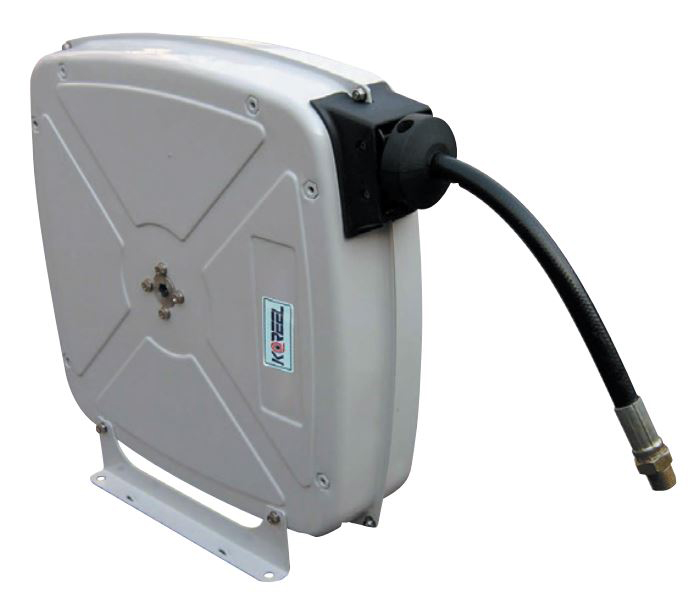

Oil pressure hose reels
EOR Series
- Use : Car service center, Petrol station, Oil depots of industrial sites
- Features : Compact appearance, Free installation
- Installation : Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)
It is usually used for the supply lines of high pressed grease and all sorts of lubricating oil.
Structured with a high pressed rubber hose and a special spring in a sealed case made of steel, it is not only strong but also its appearance looks neat.
It is well-designed so that oil may not leak or change rolling capacity even if it is used for long time.
And It is user friendly equipment made as simply as possible.
It heightens work efficiency and keeps work places tidy.

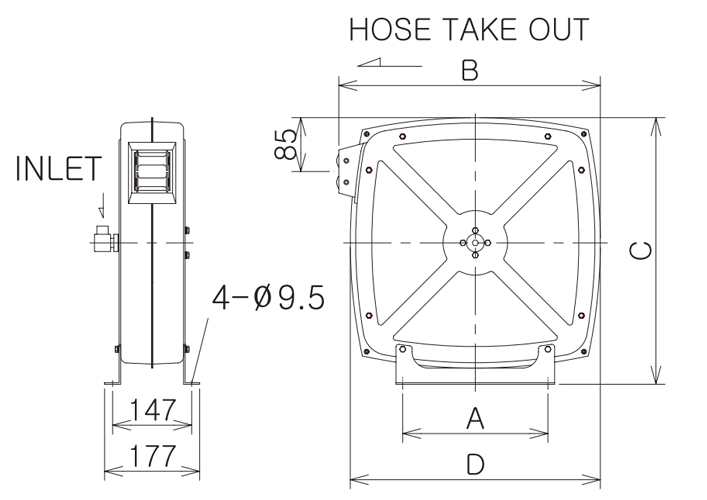

The drawings of EOR Series
The specification of EOR Series
| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | ||
| EOR-610 | 1/4"x1W | 6.4 | 10 | 60 | 270 | 486 | 495 | 465 | 16 |
| EOR-910 | 3/8"x1W | 9.5 | 10 | 60 | 270 | 486 | 495 | 465 | 19.5 |
| EOR-1310 | 1/2"x1W | 12.7 | 10 | 60 | 270 | 486 | 495 | 465 | 22 |
