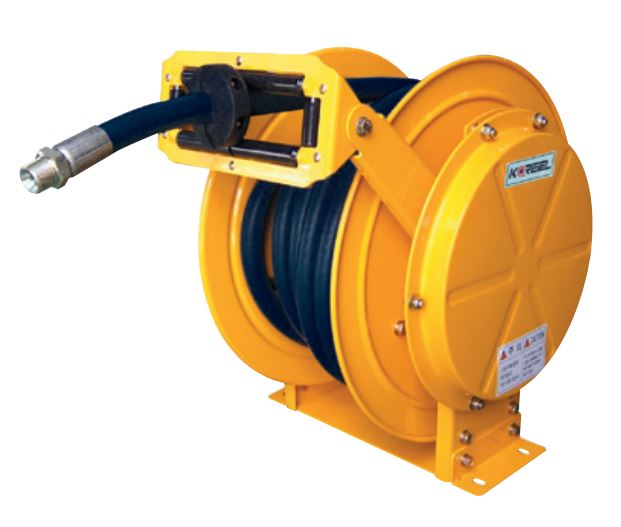

Oil pressure hose reels
RHA-G Series
- Use : Large Vehicle A/S center, Various heavy workshop, Iron mill, Grease supply for Power plant
- Features : Firm frame, long last sealing, High tension spring
- Installation : Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)
RHA-G Series
RHA-G Series

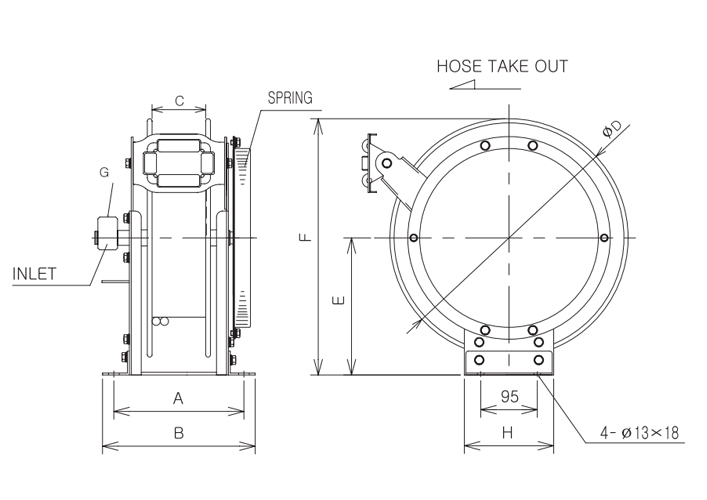

| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | E | F | G | H | ||
| RHA-610G | 1/4×2W | 6.4 | 10 | 350 | 216 | 256 | 90 | 400 | 230 | 430 | PT1/4” | 150 | 16.5 |
| RHA-615G | 1/4×2W | 6.4 | 15 | 350 | 216 | 256 | 90 | 400 | 230 | 430 | PT1/4” | 150 | 19 |
| RHA-620G | 1/4×2W | 6.4 | 20 | 350 | 236 | 276 | 110 | 400 | 230 | 430 | PT1/4” | 150 | 21.3 |
| RHA-625G | 1/4×2W | 6.4 | 25 | 350 | 236 | 276 | 110 | 450 | 260 | 485 | PT1/4” | 150 | 25.8 |
| RHA-630G | 1/4×2W | 6.4 | 30 | 350 | 236 | 276 | 110 | 450 | 290 | 515 | PT1/4” | 200 | 28 |
| RHA-910G | 3/8×2W | 9.5 | 10 | 280 | 216 | 256 | 90 | 400 | 230 | 430 | PT3/8” | 150 | 27 |
| RHA-915G | 3/8×2W | 9.5 | 15 | 280 | 236 | 276 | 110 | 450 | 260 | 485 | PT3/8” | 150 | 29 |
| RHA-920G | 3/8×2W | 9.5 | 20 | 280 | 236 | 276 | 110 | 450 | 260 | 485 | PT3/8” | 150 | 33 |
| RHA-925G | 3/8×2W | 9.5 | 25 | 280 | 278 | 318 | 150 | 500 | 290 | 540 | PT3/8” | 200 | 38 |
| RHA-930G | 3/8×2W | 9.5 | 30 | 280 | 278 | 318 | 150 | 500 | 290 | 540 | PT3/8” | 200 | 43 |
