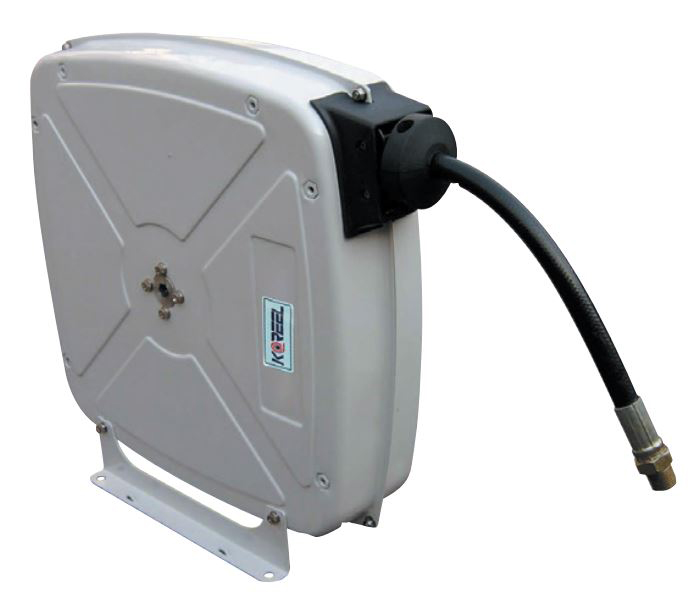

Oil pressure hose reels
EGR Series
- Use : Large-sized car service center, Manufacturing and repairing heavy machinery, Grease supply lines of steel mills
- Features : compact style, convenient to installation
- Installation : Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)

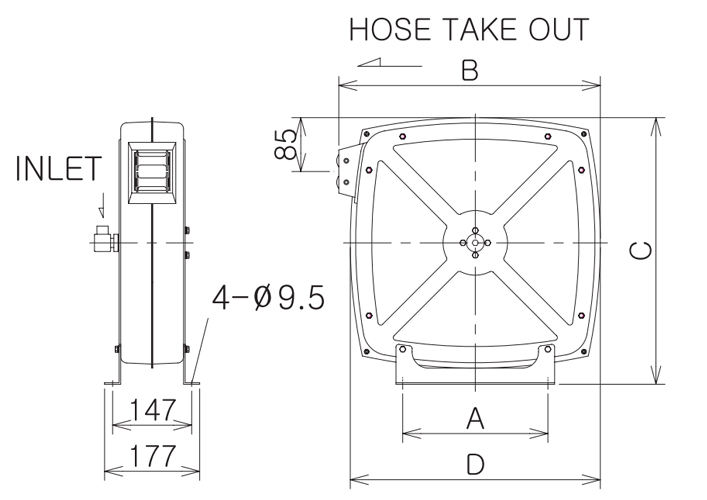

The drawings of EGR Series
The specification of EGR Series
| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | ||
| EGR-610 | 1/4"x2W | 6.4 | 10 | 280 | 270 | 486 | 495 | 465 | 16 |
| EGR-615 | 1/4"x2W | 6.4 | 15 | 280 | 270 | 486 | 495 | 465 | 18 |
| EGR-910 | 3/8"x2W | 9.5 | 10 | 280 | 270 | 486 | 495 | 465 | 19.5 |
