Reels for Special Vehicles - Control & Power supplying

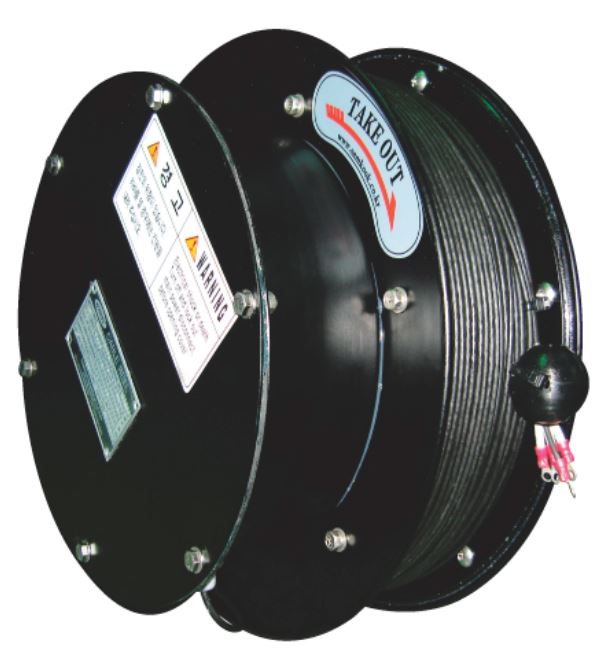

ECB Series
(For Control Signal)
- Any Specification can be acceptable as buyer's request.
Usse on telescopic boom of construction vehicles to controle the work bench and supply the power for electriclly powered equipment.
The cable for the reel is used special reeling cable and it is used for the function of communication and signal with suitable slipring.

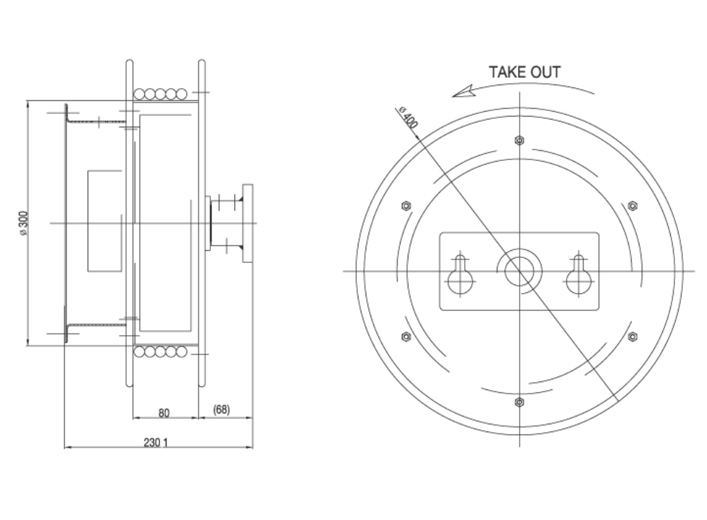

Drawings of ECB Series
ECB Series Specification
| MODEL | Hose Specification | Material | A | D | d | W |
|---|---|---|---|---|---|---|
| ECB-0728-3 | LAPP 810CY 0.755SQ × 3C | 28 | 260 | 400 | 300 | 80 |
| ECB-173-3 | LAPP 810CY 1.5SQ × 3C | 73 | 270 | 400 | 400 | 110 |
| ECC-138-7 | LAPP 810CY 1.5SQ × 3C | 38 | 260 | 400 | 300 | 80 |

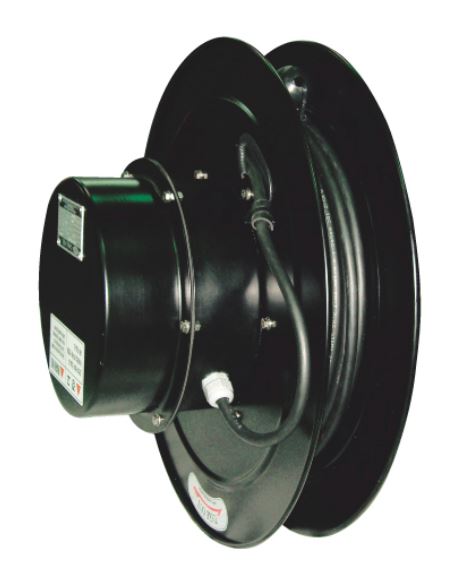

ECB Series
(For power Supply)
- Any Specification can be acceptable as buyer's request.
Usse on telescopic boom of construction vehicles to controle the work bench and supply the power for electriclly powered equipment.
The cable for the reel is used special reeling cable and it is used for the function of communication and signal with suitable slipring.

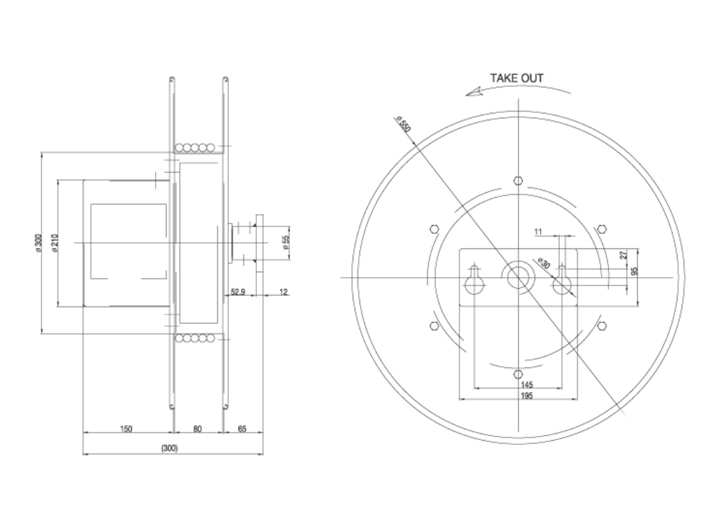

Drawings of ECB Series
ECB Series Specification
| MODEL | Hose Specification | Material | A | D | d | W |
|---|---|---|---|---|---|---|
| ECB-420-4 | PNCT 4SQ × 4C | 20 | 310 | 550 | 300 | 80 |
| ECB-450-3 | PNCT 4SQ × 3C | 50 | 340 | 600 | 300 | 110 |
| ECB-465-3 | PNCT 4SQ × 3C | 65 | 260 | 750 | 300 | 80 |
| ECB-320-4 | PNCT 3.5SQ × 4C | 20 | 260 | 500 | 300 | 80 |
