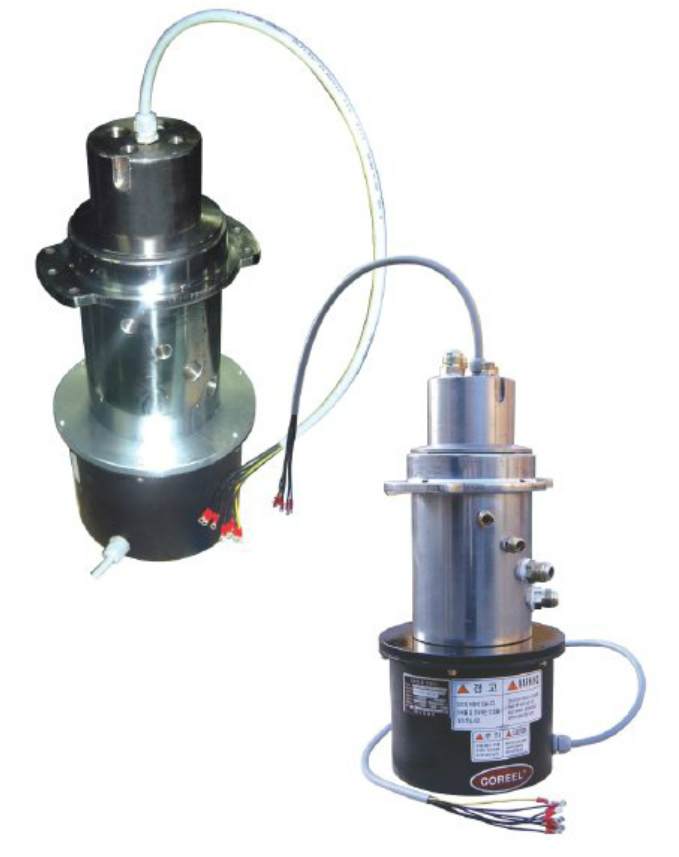

Multi Center Joint has been designed for special purpose to transmit images and supply power as integrated product. Easy to install by being minimized working process with durability and safety.

Specification
* 1" 2PORT, 3/8" 2PORT(210kg/㎠)
* Electric cable specification: Power AVS 3.5SQ 2P , Signal AVS 0.5SQ 15P
* Length of input cable(the bottom of Joint) 5.3m - Length of output cable(the top of Joint) 2.2m
* Cable with wire protector pipe
* Cable end: MS connector (MS 3106 28-11 22PIN+MS 3057-16A)

Drawings of MCJ Series
