PAR series
Product Description
Application: automobile repair shop, General Industrial Site
Features: packaged Case, lightweight Body, polyurethane braided hose
Installation place: wall, ceiling(Installation Within 2M in height)
Material: ABS plastic
Air hose reels are used in automotive repair shops, general industrial sites, etc. where air (compressed air) is required. Depending on the application and the situation on the work sites, the thickness and length of the hose can be selected. The hose uses a polyurethane braided hose produced in-house by Koreel. That’s why it’s flexible and wear-resistant. It is a packaged type in which the hose is placed inside a plastic case, so that the hose is not exposed to the outside even after winding. This makes the hose last longer and the shop floor looks cleaner and organized. In addition, the fact that the hose is not spread out on the floor also helps to improve operator safety.

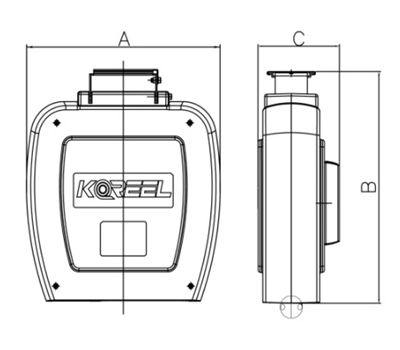

The drawings of PAR Series
The specification of PAR Series
| Model | Hose | W.P | External Size(mm) | ||||
|---|---|---|---|---|---|---|---|
| material | I.D-O.D(∅) | L(M) | Max(kg/㎠) | A | B | C | |
| PAR-810 | PU | 8~12 | 10 | 20 | 440 | 360 | 177 |
| PAR-815 | PU | 8~12 | 15 | 20 | 440 | 360 | 177 |
| PAR-820 | PU | 8~12 | 20 | 20 | 440 | 360 | 177 |
| PAR-830 | PU | 8~12 | 30 | 20 | 505 | 421 | 177 |
| PAR-1110 | PU | 11~16 | 10 | 20 | 440 | 360 | 177 |
| PAR-1115 | PU | 11~16 | 15 | 20 | 505 | 421 | 177 |
| PAR-1120 | PU | 11~16 | 20 | 20 | 505 | 421 | 177 |
| PAR-810F | Synthetic Rubber | 8~13 | 10 | 20 | 440 | 360 | 177 |
| PAR-815F | Synthetic Rubber | 8~13 | 15 | 20 | 440 | 360 | 177 |
| PAR-820F | Synthetic Rubber | 8~13 | 20 | 20 | 505 | 421 | 177 |
| PAR-915F | Synthetic Rubber | 9.5~17 | 15 | 20 | 505 | 421 | 177 |
