ALE-B series
Product Explanation
Use : Mobile work site (Construction sites, General factory and industrial sites, Laboratories)
Features : Solid frame, powder coating to prevent corrosion, Easy to move and store with manual handle. Can be mounted brakes, various thicknesses and lengths on demands
This products is a portable cord reel for safe electric work and convenience.
After use, it can be easily rewinded by using the manual handle, which has the advantage of being able to continue the work immediately in the next work.
The cable is durable and can be mount variety of cable thicknesses and lengths.
Manual handle is assembled with unique folding handle and provides easy utilization.

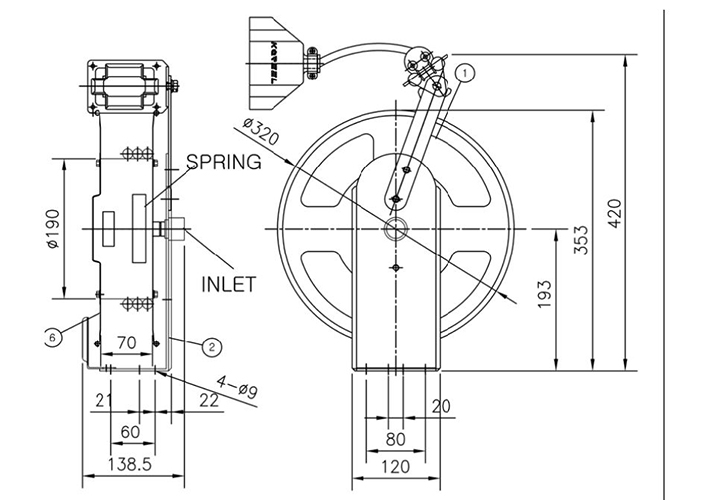

The drawings of ALE-B Series(ALE-220B)
The specification of ALE-B Series
| Model | Cable | Maximum Capacity Max(V×A) |
Weight (kg) |
Remark | |
|---|---|---|---|---|---|
| Cable Specifications | L(M) | ||||
| ALE-220B | VCTF 1.5SQ×3C, With Socket | 20 | 220V×10A | 17 | For Indoor |
| ALE-230B | VCTF 1.5SQ×3C, With Socket | 30 | 220V×10A | 18 | For Indoor |
| ALE-320B | VCTF 1.5SQ×3C, With Socket | 20 | 220V×15A | 20 | For Indoor |
| ALE-330B | VCTF 2.5SQ×3C, With Socket | 30 | 220V×15A | 22 | For Indoor |
