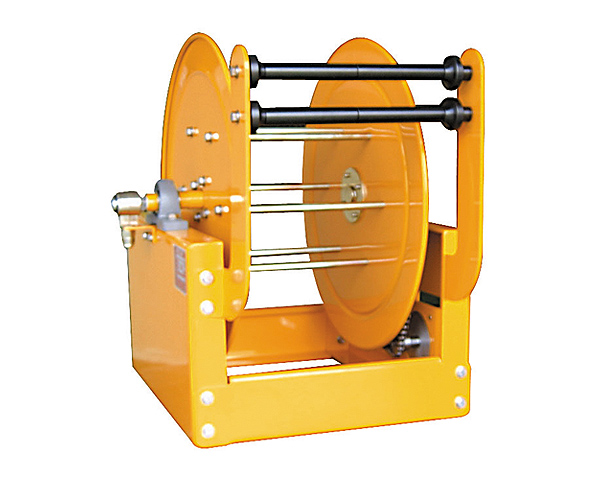

Water hose reels
WSB Series
- Use : Food industry, Construction site, Various Industrial workshop, Special truck
- Feature : Strong Frame, Manual rewind
- Installation : Vehicles and floors

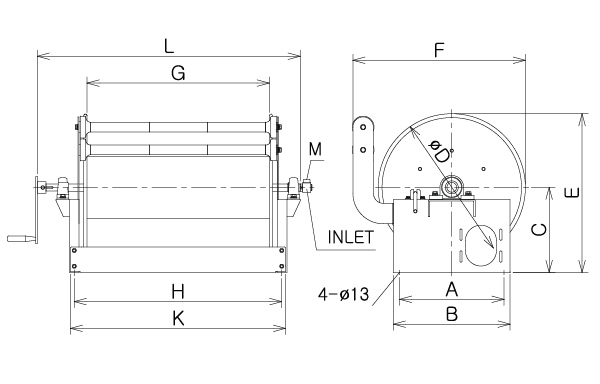

The drawings of WSB Series
The specification of WSB Series
| MODEL | Hose | W.P | Dimensions(mm) | Weight (kg) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | E | F | G | H | K | L | M | ||
| WSB-13100 | Rubber Hose | 13 | 100 | 20 | 430 | 480 | 325 | 550 | 600 | 660 | 500 | 605 | 635 | 840 | PT1/2" | 35 |
| WSB-16100 | Rubber Hose | 16 | 100 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 940 | PT1/2" | 41 |
| WSB-1950 | Rubber Hose | 19 | 50 | 20 | 430 | 480 | 325 | 550 | 600 | 660 | 500 | 605 | 635 | 840 | PT3/4" | 35 |
| WSB-2550 | Rubber Hose | 25 | 50 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 940 | PT1" | 41 |
