Water hose reels

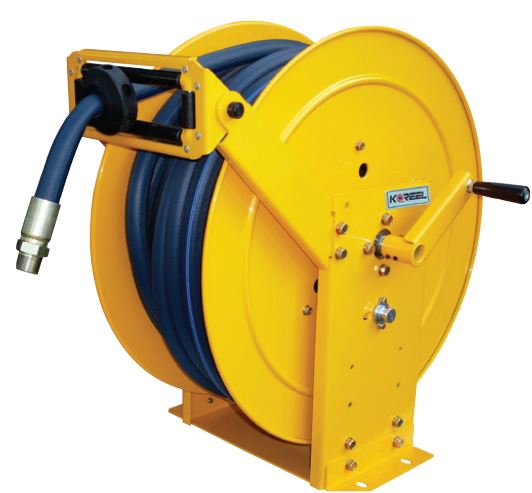

RWM-SK Series



  • Use : Food industry, Construction site, Various industrial workshop
  • Feature : Strong frame, Manual rewind
  • Installation : Floor fixing

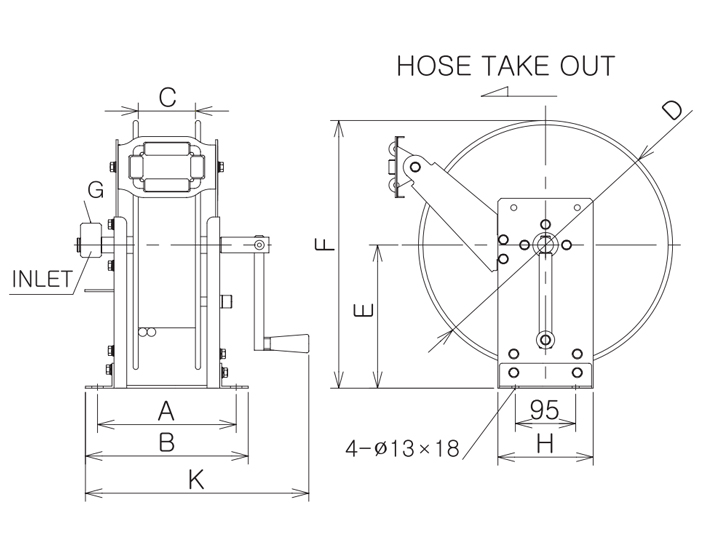

The drawings of RWM-SK Series
The specification of RWM-SK Series
MODEL Hose W.P
Max(kg/㎠)		 Dimensions(mm) Weight
(kg)
Material I.D(mm) L(M) A B C D E F G H K
RWM-1320 Synthetic Rubber 13 20 20 278 318 150 450 260 485 PT1/2” 150 420 17
RWM-1330 Synthetic Rubber 13 30 20 278 318 150 500 290 540 PT1/2” 150 420 20.4
RWM-1340 Synthetic Rubber 13 40 20 338 378 210 500 290 540 PT1/2” 200 480 23
RWM-1350 Synthetic Rubber 13 50 20 338 378 210 500 290 540 PT1/2” 200 480 27
RWM-1615 Synthetic Rubber 16 15 20 278 318 150 450 260 485 PT1/2” 150 480 19
RWM-1620 Synthetic Rubber 16 20 20 278 318 150 500 290 540 PT1/2” 150 420 20
RWM-1625 Synthetic Rubber 16 25 20 338 378 210 500 290 540 PT1/2” 200 420 20
RWM-1630 Synthetic Rubber 16 30 20 338 378 210 500 290 540 PT1/2” 200 480 25.2
RWM-1640 Synthetic Rubber 16 40 20 338 378 210 550 315 590 PT1/2” 200 480 32
RWM-1650 Synthetic Rubber 16 50 20 408 448 280 550 345 620 PT1/2” 200 550 40
RWM-1915 Synthetic Rubber 19 15 20 338 378 210 450 290 515 PT3/4” 200 480 26
RWM-1920 Synthetic Rubber 19 20 20 338 378 210 500 290 540 PT3/4” 200 480 26
RWM-1930 Synthetic Rubber 19 30 20 338 378 210 550 315 590 PT3/4” 200 480 34
RWM-1940 Synthetic Rubber 19 40 20 408 448 280 550 345 620 PT3/4” 200 550 41
RWM-2515 Synthetic Rubber 25 15 20 338 378 210 500 315 565 PT1” 200 480 30
RWM-2520 Synthetic Rubber 25 20 20 408 448 280 500 315 565 PT1” 200 550 30
RWM-2530 Synthetic Rubber 25 30 20 408 448 280 550 345 620 PT1” 200 550 36
