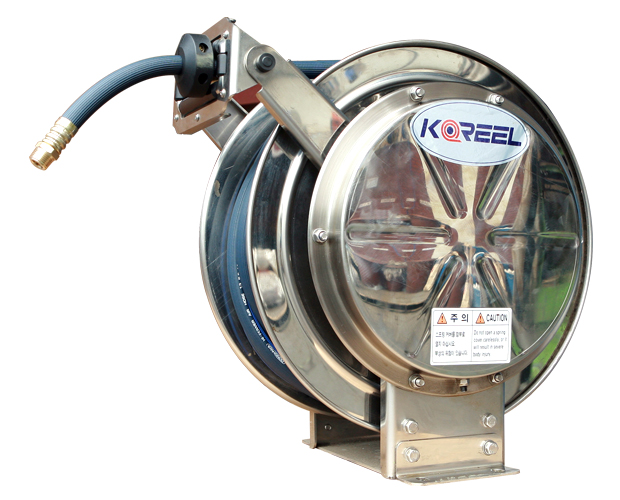

Water hose reels

RWA-STS Series

High pressure water hose reel.
Stainless Steel material.
It can be serviced various applications such as high pressure water reel,
cold & hot water reel...etc.
Customized reel is available

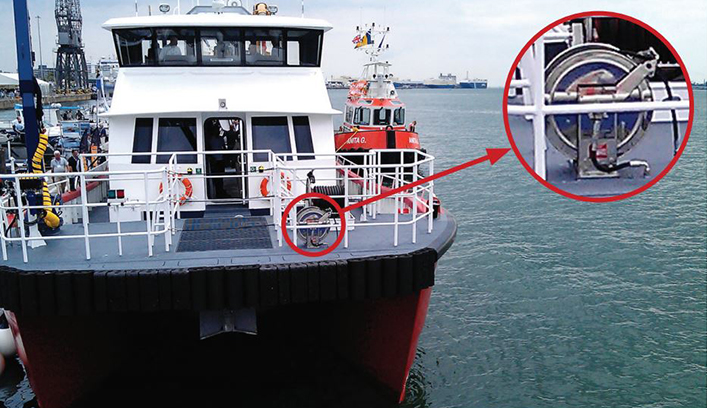

RWA-STS Series Usage example
The drawings of RWA-STS Series
The specification of RWA-STS Series
MODEL Hose W.P Dimensions(mm) Remark
Material I.D(mm) L(M) Max(kg/㎠) A B C D E F G H
RWA-1320STS Synthetic Rubber Hose 13 20 20 278 318 150 450 260 485 PT1/2" 150 Housing
External type
RWA-1325STS Synthetic Rubber Hose 13 25 20 278 318 150 500 290 540 PT1/2" 150
RWA-1330STS Synthetic Rubber Hose 13 30 20 278 318 150 500 290 540 PT1/2" 150
RWA-1340STS Synthetic Rubber Hose 13 40 20 338 378 210 500 290 540 PT1/2" 200
RWA-1610STS Synthetic Rubber Hose 16 10 20 278 318 150 450 260 485 PT1/2" 150
RWA-1615STS Synthetic Rubber Hose 16 15 20 278 318 150 450 260 485 PT1/2" 150
RWA-1620STS Synthetic Rubber Hose 16 20 20 278 318 150 500 290 540 PT1/2" 150
RWA-1625STS Synthetic Rubber Hose 16 25 20 338 378 210 500 290 540 PT1/2" 200
RWA-1630STS Synthetic Rubber Hose 16 30 20 338 378 210 500 290 540 PT1/2" 200
RWA-1640STS Synthetic Rubber Hose 16 40 20 338 378 210 550 315 590 PT1/2P" 200
RWA-1910STS Synthetic Rubber Hose 19 10 20 338 378 210 450 290 515 PT3/4" 200 Housing
Built-in
RWA-1915STS Synthetic Rubber Hose 19 15 20 338 378 210 450 290 515 PT3/4" 200
RWA-1920STS Synthetic Rubber Hose 19 20 20 338 378 210 500 290 540 PT3/4" 200
RWA-1925STS Synthetic Rubber Hose 19 25 20 338 378 210 550 315 590 PT3/4" 200
RWA-1930STS Synthetic Rubber Hose 19 30 20 338 378 210 550 315 550 PT3/4" 200
RWA-2510STS Synthetic Rubber Hose 25 10 20 338 378 280 500 290 515 PT1" 200
RWA-2515STS Synthetic Rubber Hose 25 15 20 408 448 280 500 315 565 PT1" 200
RWA-2520STS Synthetic Rubber Hose 25 20 20 408 448 280 500 315 565 PT1" 200
RWA-2525STS Synthetic Rubber Hose 25 25 20 408 448 280 550 345 620 PT1" 200
RWA-2530STS Synthetic Rubber Hose 25 30 20 408 448 280 550 345 620 PT1" 200
