Water hose reels
PWR Series
- Use : Gardening, Cleaning
- Feature : Package case, Lightweight body, Automatic rewind, Non-toxic hose
- Installation : Wall
- Material: ABS plastic case

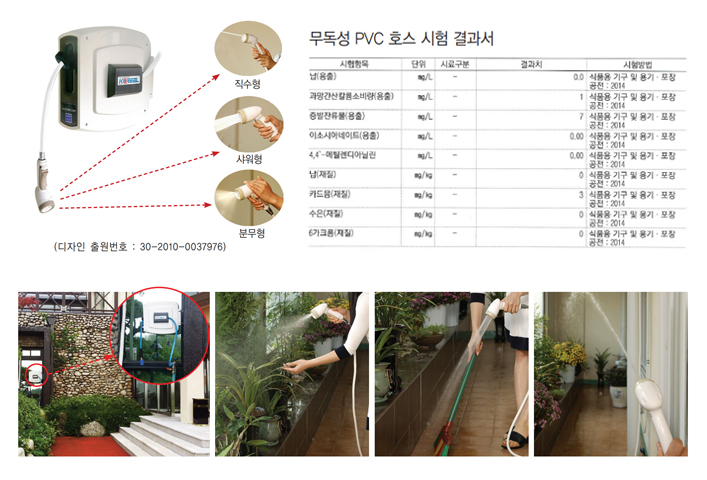

- Injection form(Nozzle): straight type, shower type, spray type
This product is optimized by gardening.
depending on models, the hose can be taken out until 15M~25M.
the range of spray is Max.10M. Therefore, this product can be sprayed the water Max.25M~35M by one way and 50M~70M by bothway And also regarding the material of pipe conduit(shaft) it is consisted stainless steel.
So only the clean water can be supplied by our reel product.
Especially, the spray type can be adjusted by 3 ways of type. It can be utilized in various area.
This water hose reel meets the requirement of HACCP.
We wwould like to recommend this reel to use in the kitchen to maintain the clean condition and arrangement. Hose is manufactured by KOREEL and consisted of non-toxic material.
Water flow can be adjusted pin point and spray mode by water nozzle.
Water nozzle covered by NBR rubber which is strong on cleanser and chemicals (The mode of PWR-1307H can be used with steam for high temperature and the hose in made in France.)

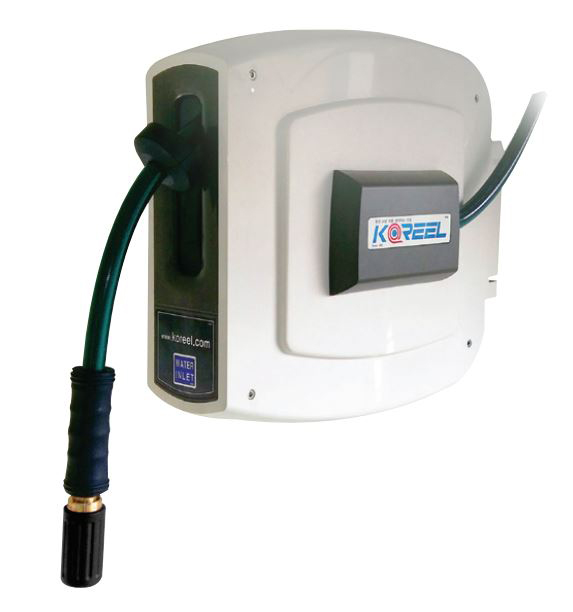

PWR Series Introduce

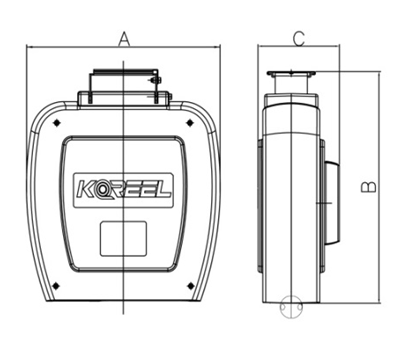

The drawings of PWR Series
The specification of PWR Series
| Model | Hose | W.P(BAR) | External Size(mm) H x D x W |
Usage | Desc | ||
| Material | I.D-O.D(∅) | L(M) | |||||
|---|---|---|---|---|---|---|---|
| PWR-815 | Non-toxic PVC Hose | 8-12 | 15 | 10 | 440×360×177 | Drinking,Cleaning | - |
| PWR-820 | Non-toxic PVC Hose | 8-12 | 20 | 10 | 440×360×177 | ||
| PWR-825 | Non-toxic PVC Hose | 8-12 | 25 | 10 | 440×360×177 | ||
| PWR-1110 | Non-toxic PVC Hose | 11 | 10 | 20 | 440×360×177 | Drinking,Cleaning | Potable Cold Water |
| PWR-1115 | Non-toxic PVC Hose | 11 | 15 | 20 | 505×421×177 | ||
| PWR-1120 | Non-toxic PVC Hose | 11 | 20 | 20 | 505×421×177 | ||
| PWR-1310 | Non-toxic PVC Hose | 13 | 10 | 20 | 505×421×177 | ||
| PWR-1110W | Non-toxic PVC Hose | 11 | 10 | 20 | 440×360×177 | Drinking,Cleaning Less 70℃ |
For Hot Water |
| PWR-1115W | Non-toxic PVC Hose | 11 | 15 | 20 | 505×421×177 | ||
| PWR-1310W | Non-toxic PVC Hose | 13 | 10 | 20 | 505×421×177 | ||
| PWR-1307SH | EPDM | 13 | 7 | 10 | 505×421×177 | Drinking,Cleaning,Disinfection less than 160℃ |
For Steam |
