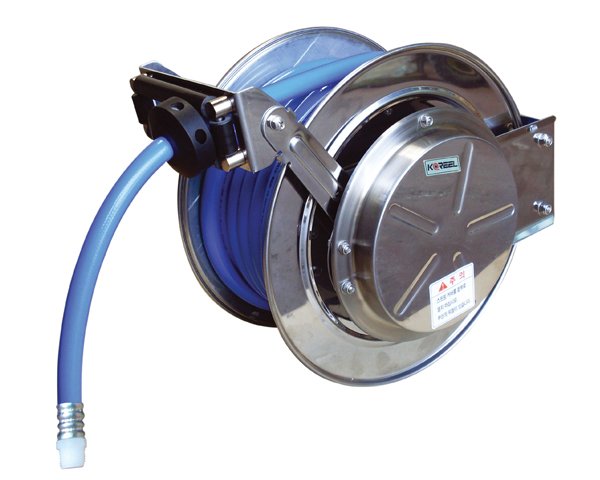

Water hose reels

TWA-SH Series



  • Use : Food plants, Kitchens, and other clean scene
  • Features : External spring,Fixed bracket
  • Installation : wall(Within 3M height, If installed over 4M, it could not rewind)
  • Material : Stainless

It can maintain the job site clean by using stainless material. The life cycle of hose also can be extended 4~5 time

For Steam : This steam hose is imported product which is certified from FDA and Europe associations. Now it is using in the factories which are applying to drinking water, milk processing and steam even disinfection equipment. The working temperature is from -30℃ to 160 ℃


The drawings of TWA-SH Series
The specification of TWA-SH Series
MODEL Hose W.P
(BAR)		 weight
(kg)		 Usage Desc
Material I.D-O.D(∅) L(M)
TWA-1308SH EPDM 13 8 10 15 Drinking,Cleaning,Disinfection
less than 160℃		 For Steam
TWA-1312SH EPDM 13 12 10 18
TWA-1315SH EPDM 13 15 10 20
