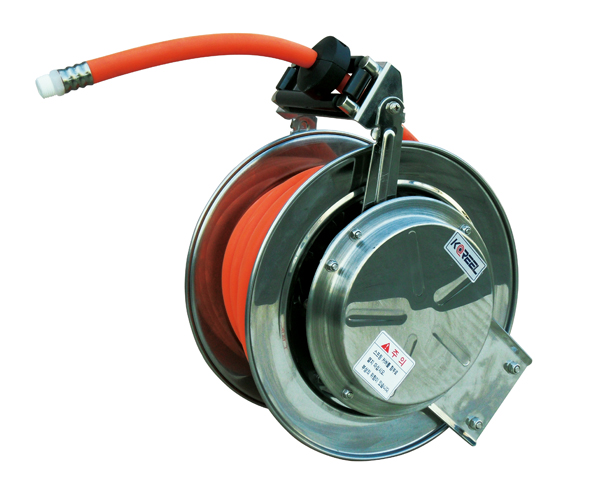

Water hose reels
TWA-W Series
- Use : Food industry, Kitchen,and Other clean scene
- Features : External spring,Fixed bracket
- Installation : Fixed to wall or floor(Within 3M height, If installed over 4M, it could not rewind)
- Material : Stainless
It can maintain the job site clean by using stainless material. The life cycle of hose also can be extended 4~5 time
- For Hot Water: The hose is not hardened until +70℃. And regarding the outer hose material, it is durable material for oil. It is also can be used for drinking and the reel body material is consisted by stainless steel material. We can guarantee it as a manufacturer.
The drawings of TWA-W Series
The specification of TWA-W Series
| MODEL | Hose | W.P (BAR) |
weight (kg) |
Usage | Desc | ||
|---|---|---|---|---|---|---|---|
| Material | I.D-O.D(∅) | L(M) | |||||
| TWA-1308W | PVC | 13 | 8 | 20 | 11 | Drinking,Cleaning Less 70℃ |
For Hot Water Hose reels (External Spring) |
| TWA-1310W | PVC | 13 | 10 | 20 | 12 | ||
| TWA-1312W | PVC | 13 | 12 | 20 | 13 | ||
| TWA-1315W | PVC | 13 | 15 | 20 | 15 | ||
