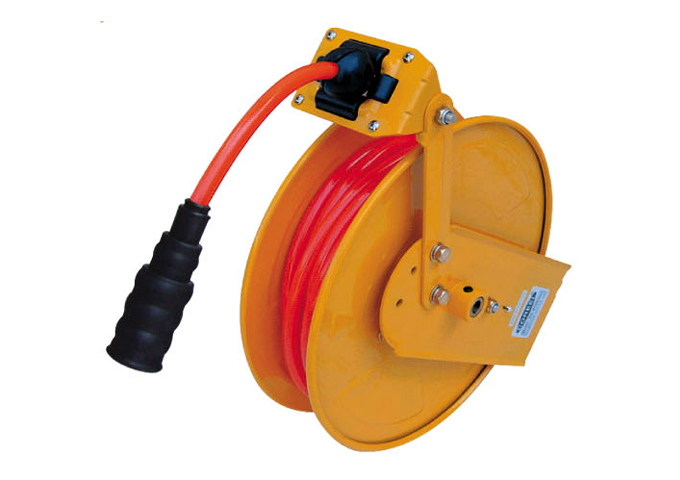

Air hose reels
RA-N Series
- Use : Car repair shop, Construction site
- Feature : Light weight, Flexible hose, Easy to install
- Installation : Wall, Ceiling(Within 4M height, If installed over 4M, it could not rewind.)

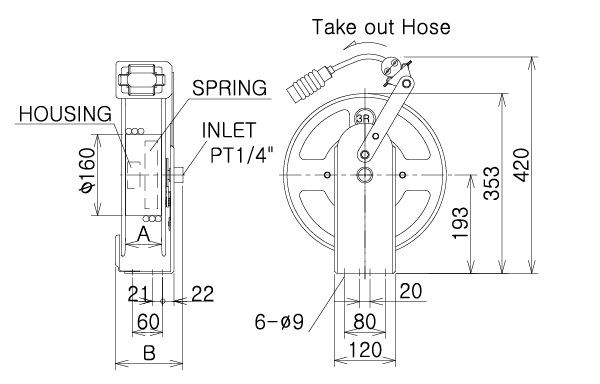

The drawings of RA-N Series
The specification of RA-N Series
| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| material | I.D(∅) | L(M) | Max(kg/㎠) | E | A | B | C | D | ||
| RA-610N | PU | 6.5 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 6.4 |
| RA-615N | PU | 6.5 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 7 |
| RA-620N | PU | 6.5 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 7.6 |
| RA-625N | PU | 6.5 | 25 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-630N | PU | 6.5 | 27 | 15 | 353 | 76 | 135 | 223 | 350 | 8.5 |
| RA-810N | PU | 8 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 6.7 |
| RA-815N | PU | 8 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 7.5 |
| RA-820N | PU | 8 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-825N | PU | 8 | 25 | 15 | 398 | 76 | 135 | 223 | 350 | 8.5 |
| RA-830N | PU | 8 | 27 | 15 | 398 | 76 | 135 | 223 | 350 | 8.5 |
| RA-1110N | PU | 11 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 7.6 |
| RA-1115N | PU | 11 | 15 | 15 | 398 | 76 | 135 | 223 | 350 | 8 |
| RA-1120N | PU | 11 | 20 | 15 | ||||||
| RA-810NF | Synthetic Rubber | 8 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-815NF | Synthetic Rubber | 8 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 8.4 |
| RA-820NF | Synthetic Rubber | 8 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 9 |
| RA-825NF | Synthetic Rubber | 8 | 25 | 15 | 398 | 76 | 135 | 223 | 350 | 11.7 |
