KOSB-3,5

  • Supplementary equipment to reduce the weight of work tools.
  • Usage Precautions
    Do not dissemble it carelessly. If the spring inside may bounce up when dissembling, there is a risk of injury.
    When you adjust the spring tension, hold spring and hexagonal wrench tightly then turn it. Otherwise, hexagonal wrench can cause the injury.
    Rechet stopper must be fixed tightly without failure.
    When a spring balancer keeps swinging(especially inside of a ship), do fix it using fitting holes bolts.

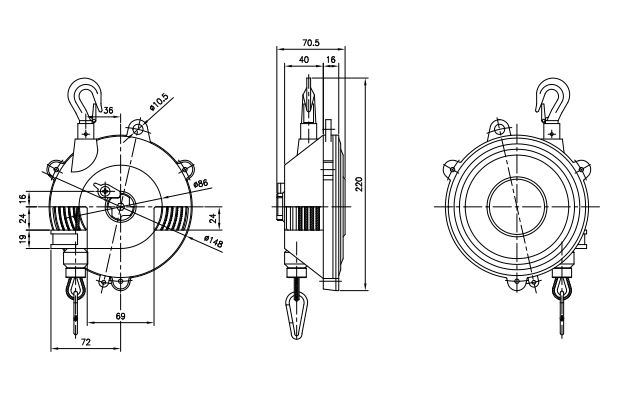

The drawings of KOSB-3,5
The specification of KOSB-3,5
MODEL Range Of Application(kg) Wire Weight(kg) Packing
(kg)
External Diameter(Ø) Length(M)
KOSB-3 1.0~3.0 3.2mm Coated Wire 1.8 1.55 1Box × 1EA
KOSB-5 3.0~5.0 3.2mm Coated Wire 1.8 1.65 1Box × 1EA
