Hose

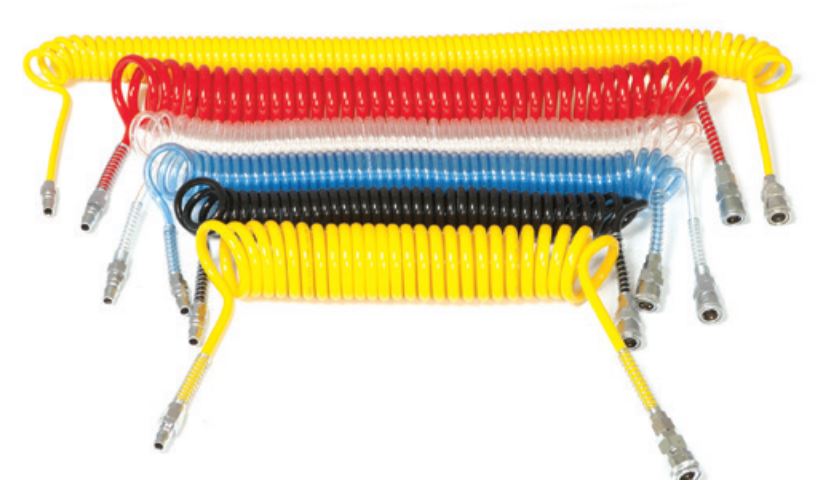

The specification of PE Coil Hose
- Portable and light
- Cold resistance and impact resistance
- Easy use for air tools, lubricating device, pneumatic tools and tacker works.
The specification of PE Coil Hose
| Size | External Diameter(mm) | Inner diameter(mm) | Length(M) | W.P(kg/㎠ at 20℃) | Color |
|---|---|---|---|---|---|
| 8×5×5 | 8 | 5 | 5 | 5 | Yellow |
| 8×5×7.5 | 8 | 5 | 7.5 | 5 | 〃 |
| 8×5×10 | 8 | 5 | 10 | 5 | 〃 |
| 10×6.5×5 | 10 | 6.5 | 5 | 5 | 〃 |
| 10×6.5×7.5 | 10 | 6.5 | 7.5 | 5 | 〃 |
| 10×6.5×10 | 10 | 6.5 | 10 | 5 | 〃 |
| 12×8×5 | 12 | 8 | 5 | 5 | 〃 |
| 12×8×7.5 | 12 | 8 | 7.5 | 5 | 〃 |
| 12×8×10 | 12 | 8 | 10 | 5 | 〃 |
