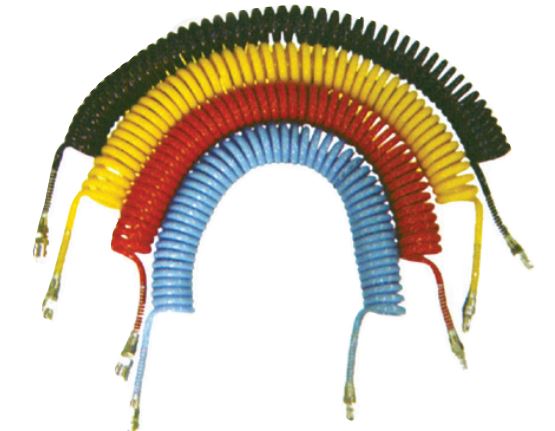

PU Coil Hose
- Portable and light
- Cold resistance and impact resistance
- Easy use for air tools, lubrication device, pneumatic tools and tacker works.

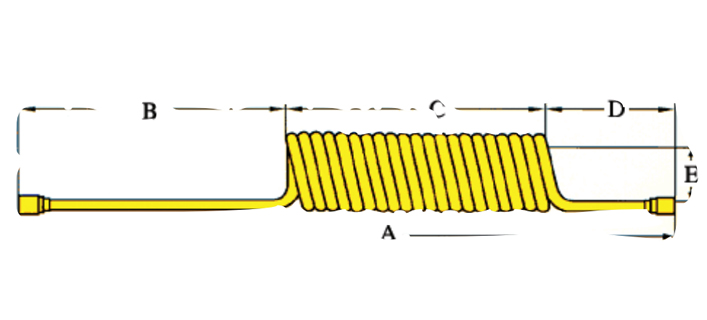

The drawings of PU Coil Hose
The specification of PU Coil Hose
| Size | E.D(mm) | I.D(mm) | L(M) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | W.P(kg/㎠ at 20℃) | Color |
|---|---|---|---|---|---|---|---|---|---|---|
| 8×5×5 | 8 | 5 | 5 | 1,000 | 150 | 430 | 150 | 34 | 8 | Yellow |
| 8×5×7.5 | 8 | 5 | 7.5 | 1,230 | 150 | 630 | 150 | 34 | 8 | Yellow, Blue |
| 8×5×10 | 8 | 5 | 10 | 1,400 | 150 | 800 | 150 | 34 | 8 | Yellow |
| 10×6.5×5 | 10 | 6.5 | 5 | 1,000 | 150 | 400 | 150 | 42 | 8 | 〃 |
| 10×6.5×7.5 | 10 | 6.5 | 7.5 | 1,235 | 150 | 635 | 150 | 42 | 8 | 〃 |
| 10×6.5×10 | 10 | 6.5 | 10 | 1,400 | 150 | 800 | 150 | 42 | 8 | 〃 |
| 12×8×5 | 12 | 8 | 5 | 990 | 150 | 390 | 150 | 60 | 8 | 〃 |
| 12×8×7.5 | 12 | 8 | 7.5 | 1,190 | 150 | 590 | 150 | 60 | 8 | 〃 |
| 12×8×10 | 12 | 8 | 10 | 1,380 | 150 | 780 | 150 | 60 | 8 | 〃 |
