Cable reel (spring type)

ECA TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : Compact size, Water-resistance
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)

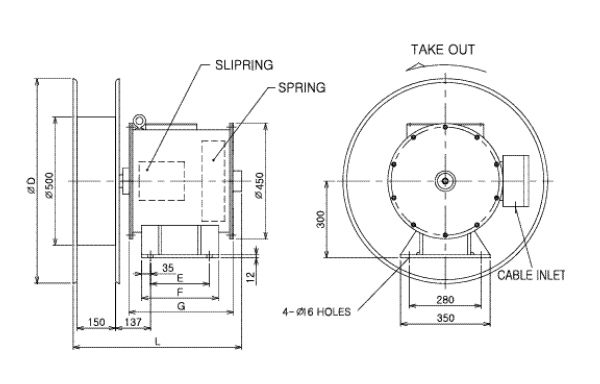

ECA50
Drawing
/Classification
SP Pole(P) D E F G L
14 D1 2~12 700 230 300 409 660
15 D1 2~12 760 230 300 409 660
16 D1 2~12 860 230 300 409 660
Drawing
/Classification
SP Pole(P) D E F G L
20 D2 2~12 700 250 320 450 700
21 D2 2~12 860 250 320 450 700
22 D2 2~12 960 250 320 450 700
