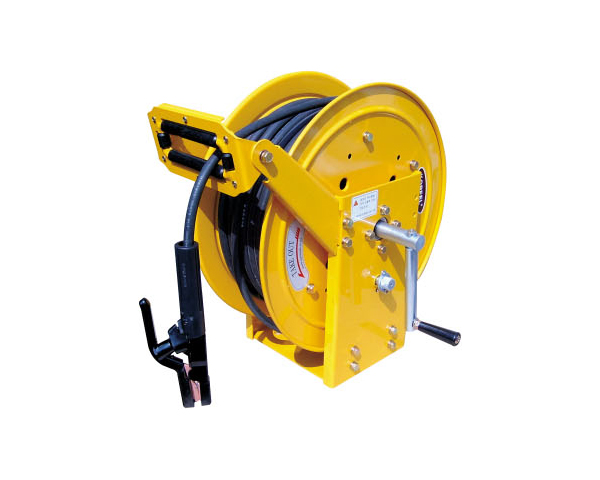

Welding reels
ARC-M Series
- Use : All sorts of electrical welding work places(Industrial site, Laboratory)
- Featuer : Solid frame, Manual rewind, Welding bar holder attached
- Installation : Fixed to the floor
It can be selected according to the capacity and length of the welder when working on arc welding.
The basic type is equipped with welding bar holder and in some cases, it is able to use as an earthing device.

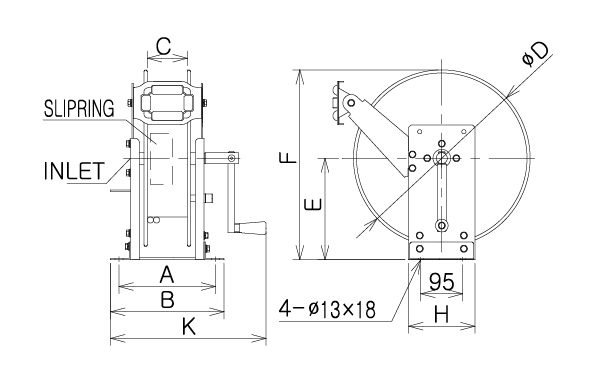

The drawings of ARC-M Series
The specification of ARC-M Series
| MODEL | Cable | Allowable Current (A) |
External Size(mm) | Weight (kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Specifications | L(M) | A | B | C | D | E | F | H | K | |||
| ARCM-2520 | WCT 25SQ×1C×Welding Holder | 20 | 200 | 278 | 318 | 150 | 400 | 230 | 430 | 150 | 420 | 21.5 |
| ARCM-2530 | WCT 25SQ×1C×Welding Holder | 30 | 200 | 278 | 318 | 150 | 400 | 230 | 430 | 150 | 420 | 30 |
| ARCM-3520 | WCT 35SQ×1C×Welding Holder | 20 | 300 | 278 | 318 | 150 | 400 | 230 | 430 | 150 | 420 | 22 |
| ARCM-3530 | WCT 35SQ×1C×Welding Holder | 30 | 300 | 278 | 318 | 150 | 450 | 260 | 485 | 150 | 420 | 31 |
| ARCM-7030 | WCT 70SQ×1C×Welding Holder | 30 | 500 | 278 | 318 | 150 | 500 | 290 | 540 | 200 | 420 | 43 |
