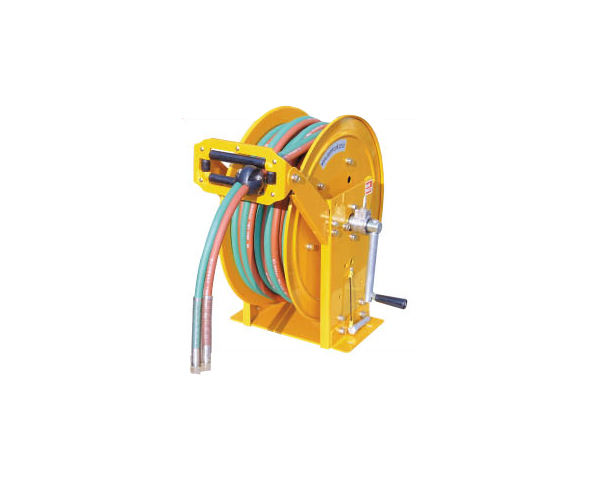

Gas hose reels
RGM Series
- Use : Gas welding, Cutting
- Features : Solid stand frame, Manual rewind
- Installation : Fixed to the floor
Gas hose Reel helps to handle the oxygen and LPG(or acetylene gas) containers safely at work sites and prevent negligent accidents.
It is designed to load any gas containers on the carriage so as not to fall down.
There is no gas leakage either at maximum pressure(15kg/㎠) or at minimum pressure and then its safety is guaranteed.
It can be organized simply.

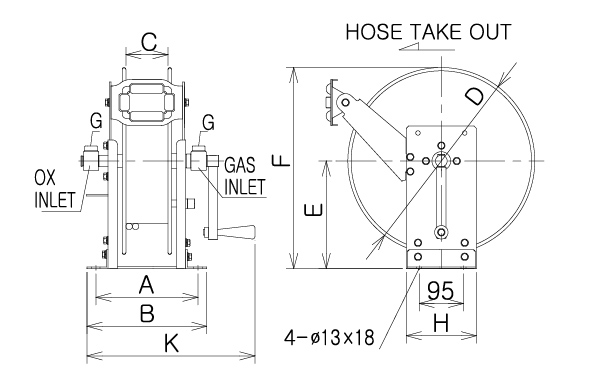

The drawings of RGM Series
The specification of RGM Series
| MODEL | Hose | W.P (kg/㎠) |
External Size | Weight (kg) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D (mm) |
L (m) |
A | B | C | D | E | F | G | H | K | |||
| RGM-620 | Rubber Hose | 4.8 | 20 | 10 | 238 | 278 | 110 | 400 | 230 | 430 | PT1/4" | 150 | 380 | 20 |
| RGM-630 | Rubber Hose | 4.8 | 30 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 420 | 23 |
| RGM-640 | Rubber Hose | 4.8 | 40 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 420 | 25 |
| RGM-650 | Rubber Hose | 4.8 | 50 | 10 | 338 | 378 | 210 | 450 | 260 | 485 | PT1/4" | 150 | 480 | 32 |
| RGM-820 | Rubber Hose | 8 | 20 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 420 | 21.3 |
| RGM-830 | Rubber Hose | 8 | 30 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 420 | 27.8 |
| RGM-840 | Rubber Hose | 8 | 40 | 10 | 338 | 378 | 210 | 500 | 290 | 540 | PT1/4" | 150 | 480 | 33 |
| RGM-850 | Rubber Hose | 8 | 50 | 10 | 338 | 378 | 210 | 550 | 315 | 590 | PT1/4" | 200 | 480 | 39 |
