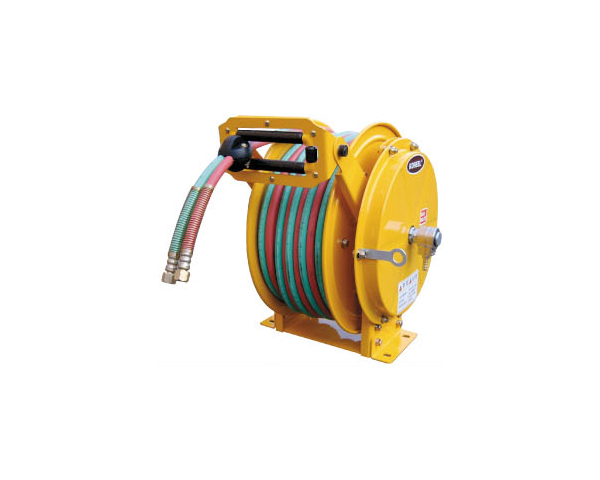

Gas Hose Reel
RGA Series
- Use : Gas welding, Cutting
- Features : Solid frame, Built-in spring
- Installation : Wall, Floor(Within 3M height, If installed over 4M, it could not rewind.)
Gas hose Reel helps to handle the oxygen and LPG(or acetylene gas) containers safely at work sites and prevent negligent accidents.
It is designed to load any gas containers on the carriage so as not to fall down.
There is no gas leakage either at maximum pressure(15kg/㎠) or at minimum pressure and then its safety is guaranteed.
It can be organized simply.

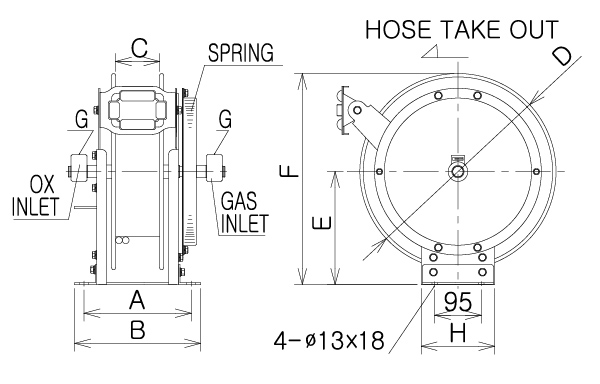

The drawings of RGA Series
The specification of RGA Series
| P.Number | MODEL | Hose | W.P | External Size | Weight (kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D (mm) |
L(m) | Max (kg/㎠) |
A | B | C | D | E | F | G | H | |||
| 5000004 | RGA-620 | Rubber Hose | 4.8 | 20 | 10 | 238 | 278 | 110 | 400 | 230 | 430 | PT1/4" | 150 | 24 |
| 5000005 | RGA-625 | Rubber Hose | 4.8 | 25 | 10 | 238 | 278 | 110 | 450 | 260 | 485 | PT1/4" | 150 | 29 |
| 5000006 | RGA-630 | Rubber Hose | 4.8 | 30 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 32 |
| 5000007 | RGA-815 | Rubber Hose | 8 | 15 | 10 | 278 | 318 | 150 | 400 | 230 | 430 | PT1/4" | 150 | 24.7 |
| 5000008 | RGA-820 | Rubber Hose | 8 | 20 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 28 |
| 5000021 | RGA-825 | Rubber Hose | 8 | 25 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 33 |
| 5000009 | RGA-830 | Rubber Hose | 8 | 30 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 36 |
Special Type Gas Reel
| P.Number | MODEL | Hose | W.P | ||
|---|---|---|---|---|---|
| Material | I.D(mm) | L(m) | Max(kg/㎠) | ||
| 5000101 | RGA-081303H | Special Mesh Wire | 13+9.5 | 30 | 60 |
| 5000102 | RGA-081304H | Special Mesh Wire | 13+9.5 | 40 | 60 |
| 5000105 | RGA-03000H | Heat-resistant high-pressure gas hose | 13+8 | 31 | 60/45 |
