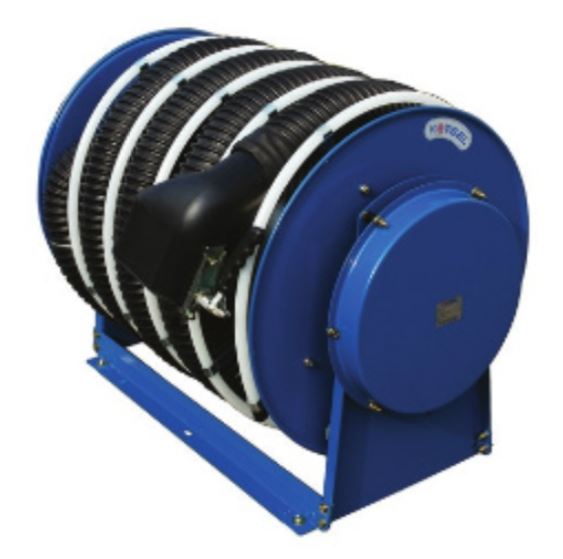

Exhaust gas reels
WGS Series
- Use: Small-sized car service center, Laboratory, School labs
- Feature: Spring rewind, Flexible high-temperature hose
- Installation: Floor, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)
It is a necessary item to keep work place of car service center clean and comfortable.
It functions to inhale hot exhaust gas and then fume out through a connected pipe.
It is the economical product which is quite adequate for small-sized work places.

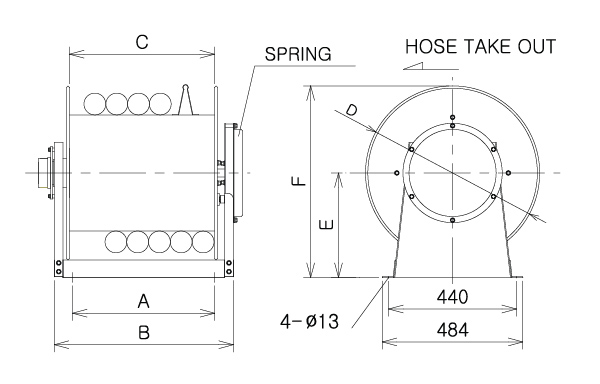

The drawings of WGS Series
The specification of WGS Series
| P.Number | MODEL | Hose | External Size | Weight (kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D(mm) | Maximum Temperature | L(m) | A | B | C | D | E | F | |||
| 9000011 | WGS-7507 | 75 | 180˚ | 7.5 | 590 | 720 | 600 | 600 | 360 | 660 | 48 |
| 9000039 | WGS-7510 | 75 | 180˚ | 10 | 740 | 870 | 750 | 600 | 360 | 660 | 53.5 |
| 9000012 | WGS-1007 | 100 | 180˚ | 7.5 | 640 | 770 | 650 | 650 | 400 | 725 | 54 |
| 7000414 | WGS-1010 | 100 | 180˚ | 10 | 790 | 920 | 800 | 650 | 400 | 725 | 60 |
