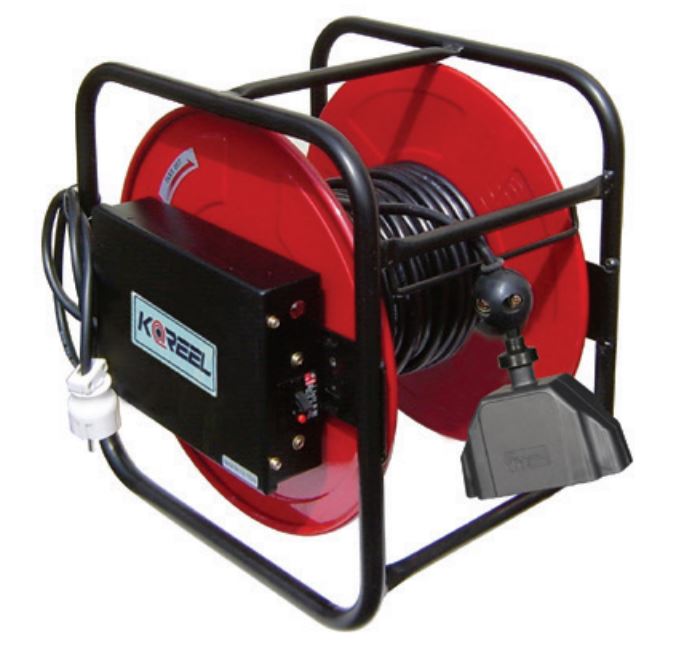

Electric cord reels

PM Series
(Normal TYPE)



  • Use : Interior work sites(using electric machine), Industrial site, Laboratory
  • Features :
  • Steel products with solid structure.
    Corrosion-resistance by powder-blast painting.
    Easy movement and storage by using a manual handle.
    Equipped with a brake.
    Able to be equipped various cords in thickness and length.

Cord Reel increases greatly work efficiency and safety when dealing with electrical equipments.
After work, it is easy to rewind the cable with a handle and make a use of it instantly to the following work.
Additionally, the cord is considerably durable. There are various types based on the cable length.

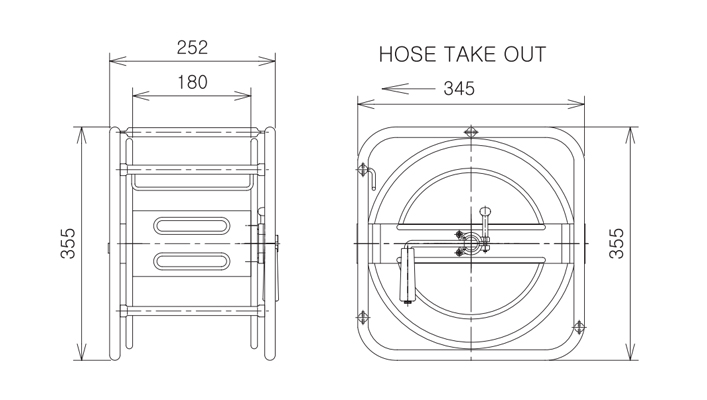

The drawings of PM Series
The specification of PM Series
MODEL Cable Maximum Capacity(A) Weight(kg) Remark
Cable Specifications L(M)
EPM-230 VCTF-1.5SQ×3C, Outlet 30 220V×10A 7.5 For Indoor
EPM-240 VCTF-1.5SQ×3C, Outlet 40 220V×10A 8 For Indoor
EPM-250 VCTF-1.5SQ×3C, Outlet 50 220V×10A 8.5 For Indoor
