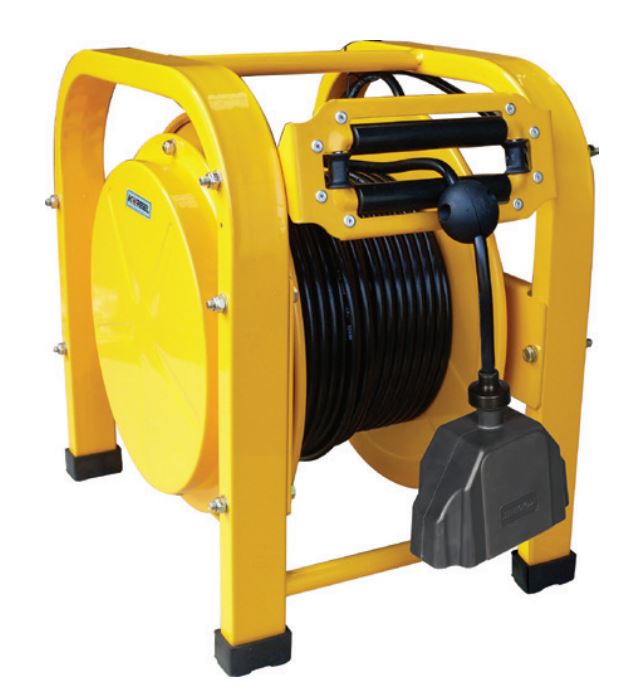

Electric cord reels
ALE-B Series
- Use : Moving work places(Construction site, Industrial site, Laboratory
- Features : Automatic rewind, Solid frame, Light weight
- Installation : Portable
Cord Reel increases greatly work efficiency and safety when dealing with electrical equipments.
After work, it is easy to rewind the cable with a handle and make a use of it instantly to the following work.
Additionally, the cord is considerably durable. There are various types based on the cable length.

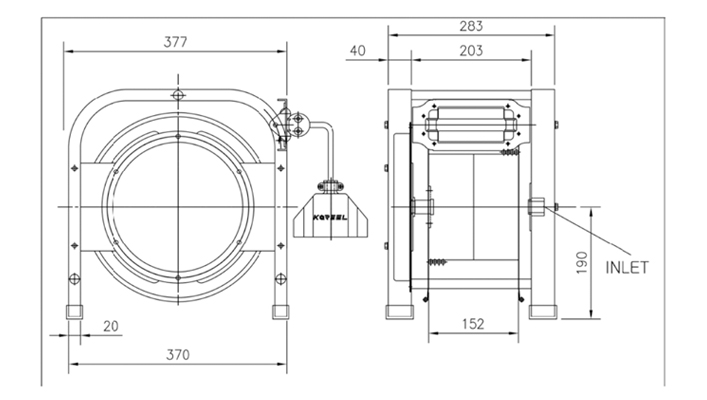

The drawings of ALE-B Series
The specification of ALE-B Series
Model | Cable | Maximum Capacity Max(V×A) |
Weight (kg) |
Remark | |
---|---|---|---|---|---|
Cable Specifications | L(M) | ||||
ALE-220B | VCTF 1.5SQ×3C, Outlet | 20 | 220V×10A | 17 | For Indoor |
ALE-230B | VCTF 1.5SQ×3C, Outlet | 30 | 220V×10A | 18 | For Indoor |
ALE-320B | VCTF 2.5SQ×3C, Outlet | 20 | 220V×15A | 20 | For Indoor |
ALE-330B | VCTF 2.5SQ×3C, Outlet | 30 | 220V×15A | 22 | For Indoor |
