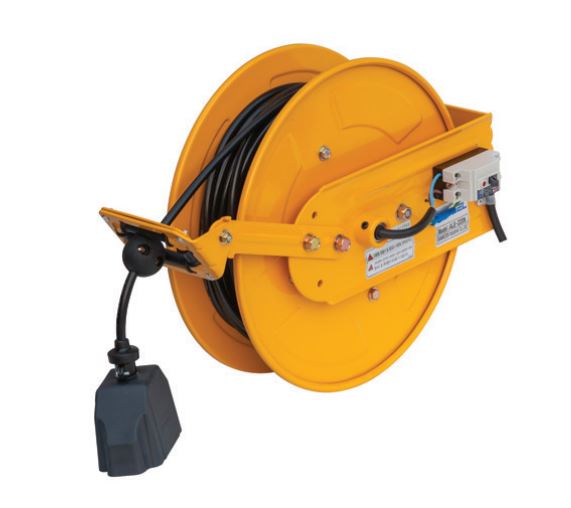

Electric cord reels
ALE-N v
- Use : Car service center, Industrial site, Laboratory
- Features : Light weight frame, Flexible synthetic rubber hose
- Installation : Wall, Ceiling, TS-floor type
Cord Reel increases greatly work efficiency and safety when dealing with electrical equipments.
After work, it is easy to rewind the cable with a handle and make a use of it instantly to the following work.
Additionally, the cord is considerably durable. There are various types based on the cable length.

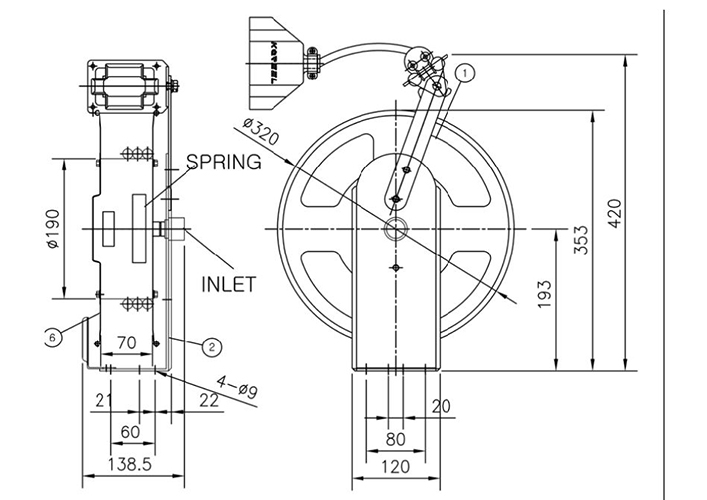

The drawings of ALE-N Series
The specification of ALE-N Series
| Model | Cable | Maximum Capacity Max(V×A) |
Weight (kg) |
Remark | |
|---|---|---|---|---|---|
| Cable Specifications | L(M) | ||||
| ALE-210N | VCTF 1.5SQ×3C, Outlet | 10 | 220V×10A | 7.8 | For Indoor |
| ALE-215N | VCTF 1.5SQ×3C, Outlet | 15 | 220V×10A | 8.5 | For Indoor |
| ALE-220N | VCTF 1.5SQ×3C, Outlet | 20 | 220V×10A | 9.3 | For Indoor |
| ALE-230N | VCTF 1.5SQ×3C, Outlet | 30 | 220V×15A | 10 | For Indoor |
| ALE-310N | VCTF 2.5SQ×3C, Outlet | 10 | 220V×10A | 9 | For Indoor |
