Electric cord reels
PER Series
- Use : All sorts of electrical work places(Service center,Factories, Laboratory)
- Features : Steel package type, Hanger bracket included
- Installation : Wall, Celling (Within 3M height, If installed over 4M, it could not rewind.)
- Material : ABS plastic case
enables to promote safety and convenience when being in works using electricity.
enables to make a immediate use for the following works through automated rewinding capability after use.
enables to keep operation cables long lived and has various types of product depending on types of power and how to install according to length of cable.

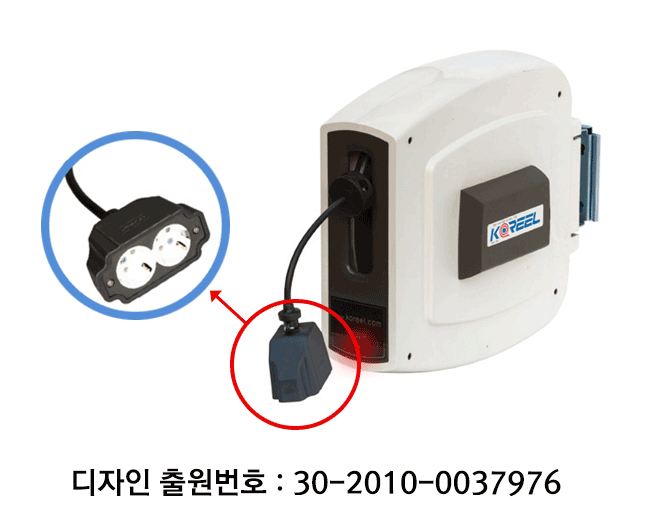

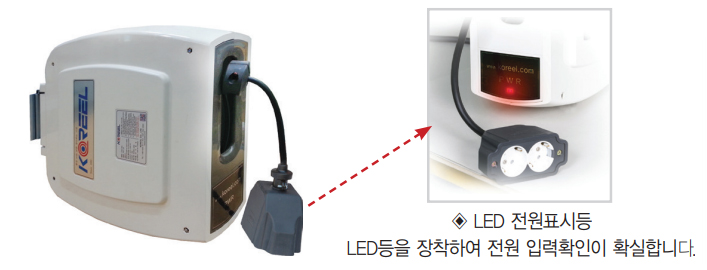

PER Series Introduce

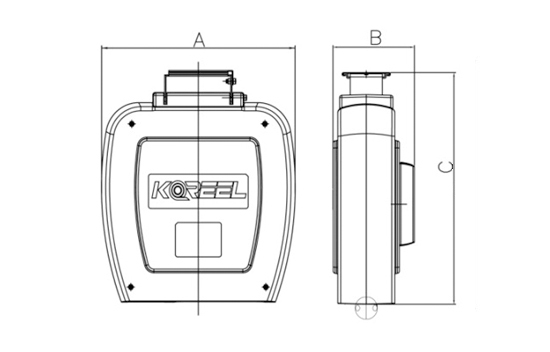

The drawings of PER Series
The specification of PER Series
| Model | Cable | Maximum Capacity | SIZE(mm) | Weight (kg) |
||
|---|---|---|---|---|---|---|
| Material | I.D - O.D(Ø) | L (M) | ( A / B / C ) | |||
| PER-110 | VCTF | 1.5SQ * 3C | 10 | 220V-10A | 440*177*360 | 9.8 |
| PER-115 | VCTF | 1.5SQ * 3C | 15 | 220V-10A | 440*177*360 | 10.1 |
| PER-120 | VCTF | 1.5SQ * 3C | 20 | 220V-10A | 440*177*360 | 11.2 |
| PER-130 | VCTF | 1.5SQ * 3C | 27 | 220V-10A | 505*177*421 | 12.1 |
| PER-210 | VCTF | 2.5SQ * 3C | 10 | 220V-15A | 440*177*360 | 10.3 |
| PER-215 | VCTF | 2.5SQ * 3C | 15 | 220V-15A | 440*177*360 | 10.8 |
| PER-220 | VCTF | 2.5SQ * 3C | 20 | 220V-15A | 440*177*360 | 12.2 |
| PER-230 | VCTF | 2.5SQ * 3C | 27 | 220V-15A | 505*177*421 | 13.5 |
