Water hose reels
WNR Series
- Use : Construction site, Various Industrial workshop, Agricultural chemicals
- Feature : Light weight, Manual rewind
- Installation : Mobile
WNR Series

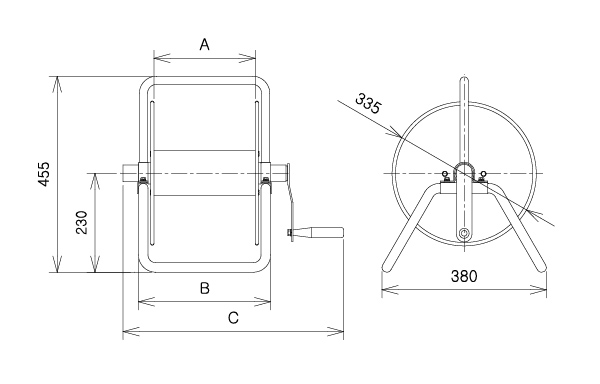

The drawings of WNR Series
The specification of WNR Series
| MODEL | Hose | W.P | Dimensions | Weight (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | ||
| WNR-850 | Synthetic Rubber | 8 | 50 | 20 | 235 | 303 | 490 | ∅320 | 4.5 |
| WNR-1330 | Synthetic Rubber | 13 | 30 | 20 | 235 | 303 | 490 | ∅320 | 4.5 |
| WNR-1350 | Synthetic Rubber | 13 | 50 | 20 | 235 | 303 | 490 | ∅320 | 9 |
| WNR-8100 | Synthetic Rubber | 8 | 100 | 20 | 235 | 303 | 490 | ∅320 | 9 |
| WNR-8200 | Synthetic Rubber | 8 | 200 | 20 | 330 | 434 | 600 | - | 12 |
| WNR-13100 | Synthetic Rubber | 13 | 100 | 20 | 330 | 434 | 600 | - | 12 |
