Water hose reels

RWA-SK Series



  • Use : Food industry, Construction site, Various industrial workshop
  • Feature : Strong frame, Long last sealing, High tension spring
  • Installation : Wall, Floor(Within 4M height, If installed over 4M, it could not rewind.)

is auto rewinding hose reel.
There is a corrosion resistance stainless hose reel according to use and function.
There are various reels such as hose reel for a drink, hose reel for balcony, water reel of high pressure.
is designed for special truck and fire truck by custom order.

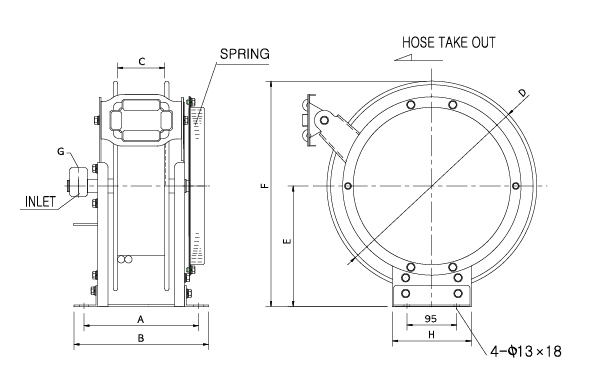

The drawings of RWA-SK Series
The specification of RWA-SK Series
MODEL Hose W.P
Max(kg/㎠)		 Dimensions(mm) Weight
(kg)
Material I.D(mm) L(M) A B C D E F G H
RWA-1310 Synthetic Rubber 13 10 20 278 318 150 400 230 430 PT1/2" 150 19
RWA-1315 Synthetic Rubber 13 15 20 278 318 150 400 230 430 PT1/2" 150 21
RWA-1320 Synthetic Rubber 13 20 20 278 318 150 450 260 485 PT1/2" 150 27
RWA-1325 Synthetic Rubber 13 25 20 278 318 150 500 290 540 PT1/2" 200 30
RWA-1330 Synthetic Rubber 13 30 20 278 318 150 500 290 540 PT1/2" 200 32.4
RWA-1340 Synthetic Rubber 13 40 20 338 378 210 500 290 540 PT1/2" 200 40
RWA-1610 Synthetic Rubber 16 10 20 278 318 150 450 260 485 PT1/2" 150 26
RWA-1615 Synthetic Rubber 16 15 20 278 318 150 450 260 485 PT1/2" 200 29
RWA-1620 Synthetic Rubber 16 20 20 278 318 150 500 290 540 PT1/2" 200 32
RWA-1625 Synthetic Rubber 16 25 20 338 378 210 500 290 540 PT1/2" 200 36
RWA-1630 Synthetic Rubber 16 30 20 338 378 210 500 290 540 PT1/2" 200 40
RWA-1640 Synthetic Rubber 16 40 20 338 378 210 550 315 590 PT1/2" 200 45
RWA-1910 Synthetic Rubber 19 10 20 338 378 210 450 290 515 PT3/4" 200 28.7
RWA-1915 Synthetic Rubber 19 15 20 338 378 210 450 290 515 PT3/4" 200 34
RWA-1920 Synthetic Rubber 19 20 20 338 378 210 500 290 540 PT3/4" 200 38
RWA-1925 Synthetic Rubber 19 25 20 338 378 210 550 315 590 PT3/4" 200 42
RWA-1930 Synthetic Rubber 19 30 20 338 378 210 550 315 590 PT3/4" 200 45
RWA-2510 Synthetic Rubber 25 10 20 338 378 210 450 290 515 PT1" 200 35
RWA-2515 Synthetic Rubber 25 15 20 338 378 210 500 315 565 PT1" 200 38
RWA-2520 Synthetic Rubber 25 20 20 408 448 280 500 315 565 PT1" 200 43.6
RWA-2525 Synthetic Rubber 25 25 20 408 448 280 550 345 620 PT1" 200 48.6
RWA-2530 Synthetic Rubber 25 30 20 408 448 280 550 345 620 PT1" 200 50.5
