Water hose reels
STWA-H Series
- Use : Food plants, Kitchens, and other clean scen
- Features : External spring,Fixed bracket
- Installation : wall(Within 3M height, If installed over 4M, it could not rewind)
This reel is used by franchise and restaurants for using cold, hot water, steam. The mounting space is mainly on the ground. And depending on usage, the production size can be customized(by small type).

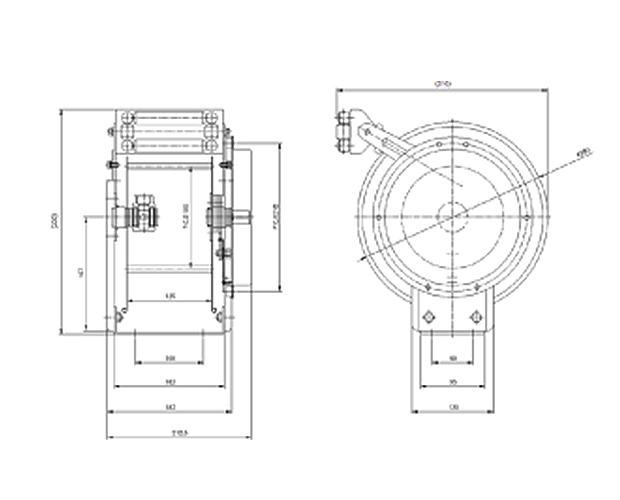

The drawings of STWA-H Series
The specification of STWA-H Series
| MODEL | Hose | W.P (BAR) |
weight (kg) |
Usage | Desc | ||
|---|---|---|---|---|---|---|---|
| Material | I.D-O.D(∅) | L(M) | |||||
| STWA-908H | NBR,SBR | 9 | 8 | 20 | 12 | Cleaning Less 100℃ | For Hot Water Less 100℃ |
| STWA-1315H | NBR,SBR | 13 | 15 | 20 | 24 | ||
