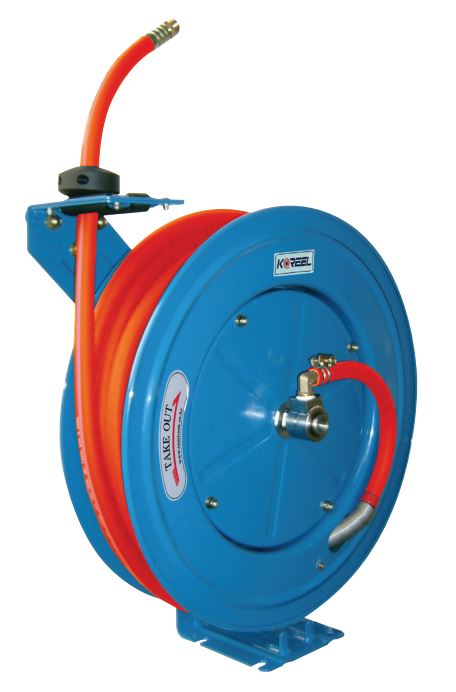

Air hose reels
SJ Series
(Air Reel)
- Use : Construction site, Industrial site
- Feature : Compact size, Automatic winding, Single steel frame
- Installation : Wall, Ceiling

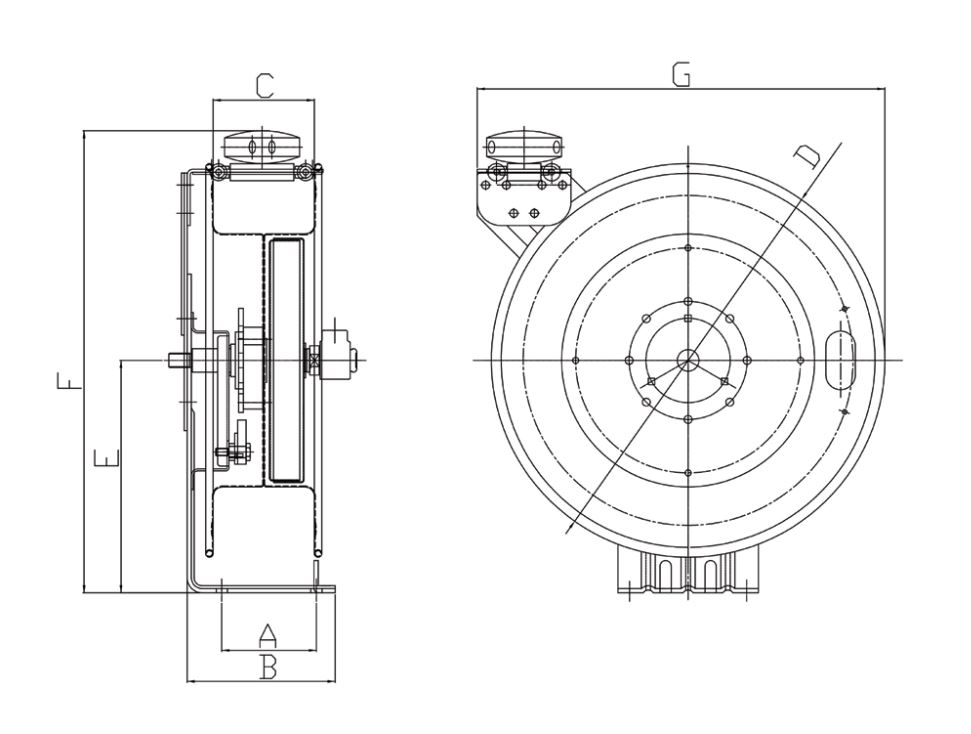

The drawings of SJ Series
The specification of SJ Series
| MODEL | Hose | W.P Max(kg/㎠) |
External Size(mm) | Weight (kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| material | I.D(mm) | L(M) | A | B | C | D | E | F | G | |||
| SRA-810 | PU.PP | 8 | 10 | 15 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 17 |
| SRA-815 | PU.PP | 8 | 15 | 15 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 18 |
| SRA-820 | PU.PP | 8 | 20 | 15 | 101 | 158 | 110 | ∅420 | 248 | 493 | 435 | 19 |
| SRA-1110 | PU.PP | 11 | 10 | 15 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 18 |
| SRA-1115 | PU.PP | 11 | 15 | 15 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 19 |
| SRA-1120 | PU.PP | 11 | 20 | 15 | 101 | 158 | 110 | ∅420 | 248 | 493 | 517 | 24 |
