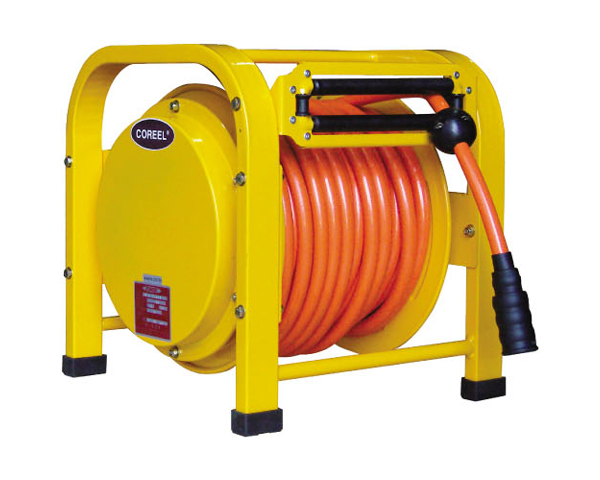

Air hose reels
RA-B Series
- Use : Various workshop, Construction site
- Feature : Auto Rewind, Strong Frame
- Installation : Mobile
- Body : large·Medium·Small
The drawings of RA-B Series
The specification of RA-B Series
| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
||||
|---|---|---|---|---|---|---|---|---|
| material | I.D(∅) | L(M) | Max(kg/㎠) | A | B | C | ||
| RA-630B | PU | 6.5 | 30 | 15 | 370 | 320 | 390 | 13.5 |
| RA-830B | PU | 8 | 30 | 15 | 370 | 320 | 390 | 15 |
| RA-840B | PU | 8 | 40 | 15 | 450 | 400 | 460 | 16 |
| RA-850B | PU | 8 | 50 | 15 | 450 | 400 | 460 | 21 |
| RA-1120B | PU | 11 | 20 | 15 | 370 | 320 | 385 | 14 |
| RA-1130B | PU | 11 | 30 | 15 | 370 | 320 | 385 | 16.4 |
| RA-1150B | PU | 11 | 50 | 15 | 450 | 400 | 460 | 24 |
